PRE CUT LENGTHS OF RG 6 COAX CABLE
WITH RF CONNECTORS
| Pre-Made
Black RG 6 Coax Cables with RF Connectors / 5' in
Length / # RG6-5 |
RG6-5
/ 2.99 ea. plus 10.00 Shipping
Total cost =12.99
|
RG6-5-2
/ 2 for 5.98 plus 10.00 Shipping
Total cost = 15.98
|
RG6-5-4
/4 for 11.96 plus 10.00 Shipping
Total cost = 21.96
|
| Pre-Made
Black RG 6 Coax Cables with RF Connectors / 25'
in Length / # RG6-25 |
RG6-25
/ 6.75 ea. plus 10.00 Shipping
Total cost = 16.75
|
RG6-25-2
/ 2 for 13.50 plus 10.00 Shipping
Total cost = 23.50
|
RG6-25-4
/ 4 for 27.00 plus 15.00 Shipping
Total cost = 42.00
|
| Pre-Made
Black RG 6 Coax Cables with RF Connectors / 50'
in Length / # RG6-50 |
RG6-50
/ 10.00 ea. plus 10.00 Shipping
Total cost = 20.00
|
RG6-50-2
/ 2 for 20.00 plus 15.00 Shipping
Total cost = 35.00
|
RG6-50-4
/ 4 for 40.00 plus 15.00 Shipping
Total cost = 55.00
|
| Pre-Made
Black RG 6 Coax Cables with RF Connectors / 100'
in Length / # RG6-100 |
RG6-100
/ 15.00 ea. plus 15.00 Shipping
Total cost = 30.00
|
RG6-100-2
/ 2 for 30.00 plus 17.50 Shipping
Total cost = 47.50
|
RG6-100-4
/ 4 for 60.00 plus 20.00 Shipping
Total cost = 80.00
|
BULK RG 6 COAX CABLE

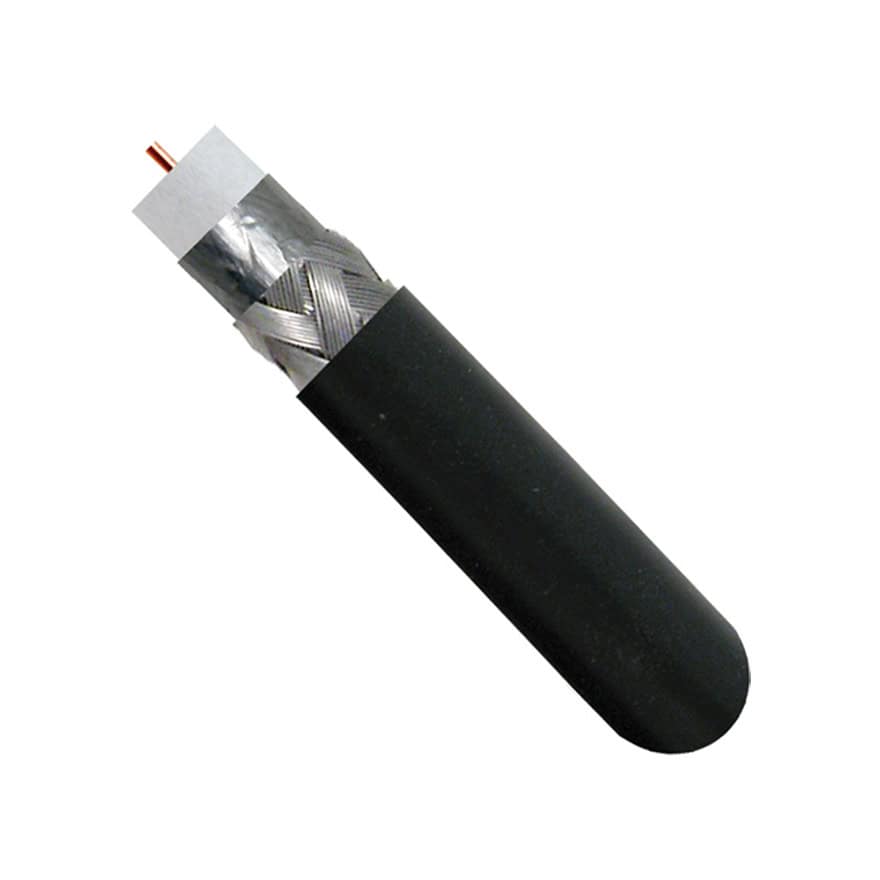

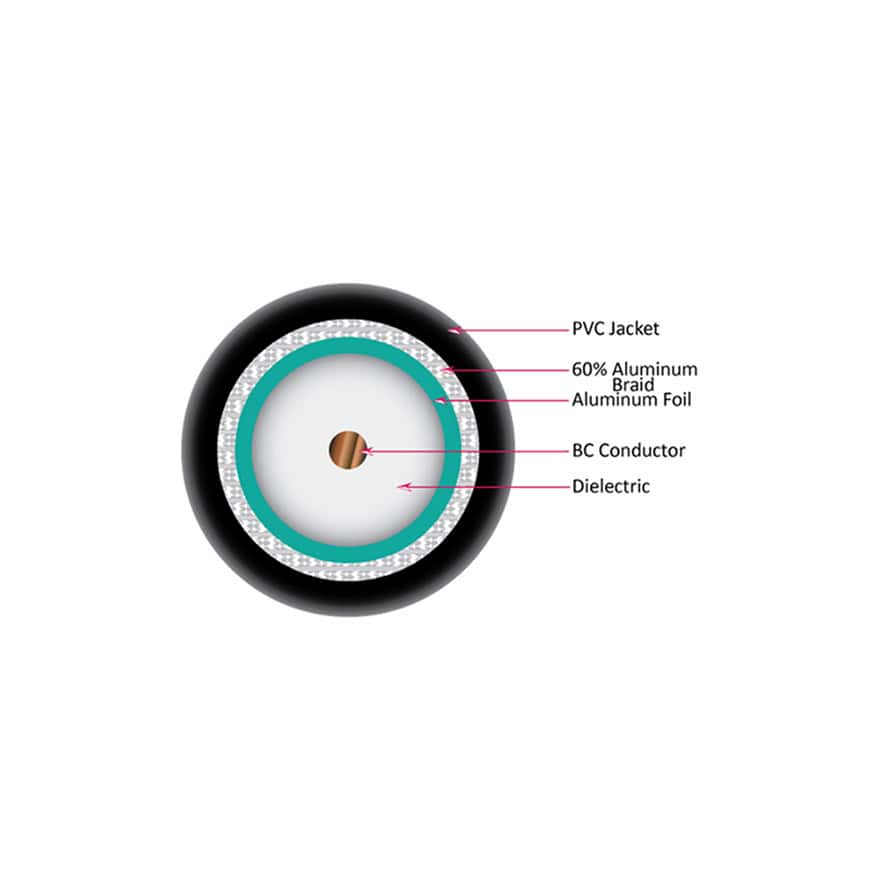

VER1814B - The
Vertical Cable RG6 Standard Shield Power
Cable is ETL, RoHS compliant, fully sweep
tested to 3000MHz, and made of 18AWG solid
copper-clad steel.
| Conductor
Material: |
Copper
Clad Steel (Solid) |
| Size: |
18 AWG |
| Construction: |
f1.024±0.10 mm |
| Insulation
Material: |
Foamed PE |
| Diameter: |
f4.57±0.10mm |
| Min. Thickness: |
1.52mm |
| Color: |
White |
| First Shield Outer
Conductor Material: |
Aluminum/PET-Foil
Bonded |
| Second Shield
Outer Conductor Material: |
Aluminum Wire |
| Size: |
0.16mm |
| Construction: |
0.16 x 4 x 16mm,
60% Coverage |
| Jacket Material: |
PVC |
| Diameter: |
6.9±0.15mm |
| Min. Thickness: |
0.62mm |
| Jacket Color: |
Black |
| Electrical
Specifications: |
(20°C) |
| Conductor DC
Resistance: |
=120?/km |
| Nominal
Capacitance: |
52±2pF/m |
| Impedance: |
75±3 Ohms |
| Jacket Print: |
c(ETL)us 4009326
CM RG6 18AWG 60% 3.0GHz CMG FT4, CATV/CL2
RoHS XXXXFT |
|

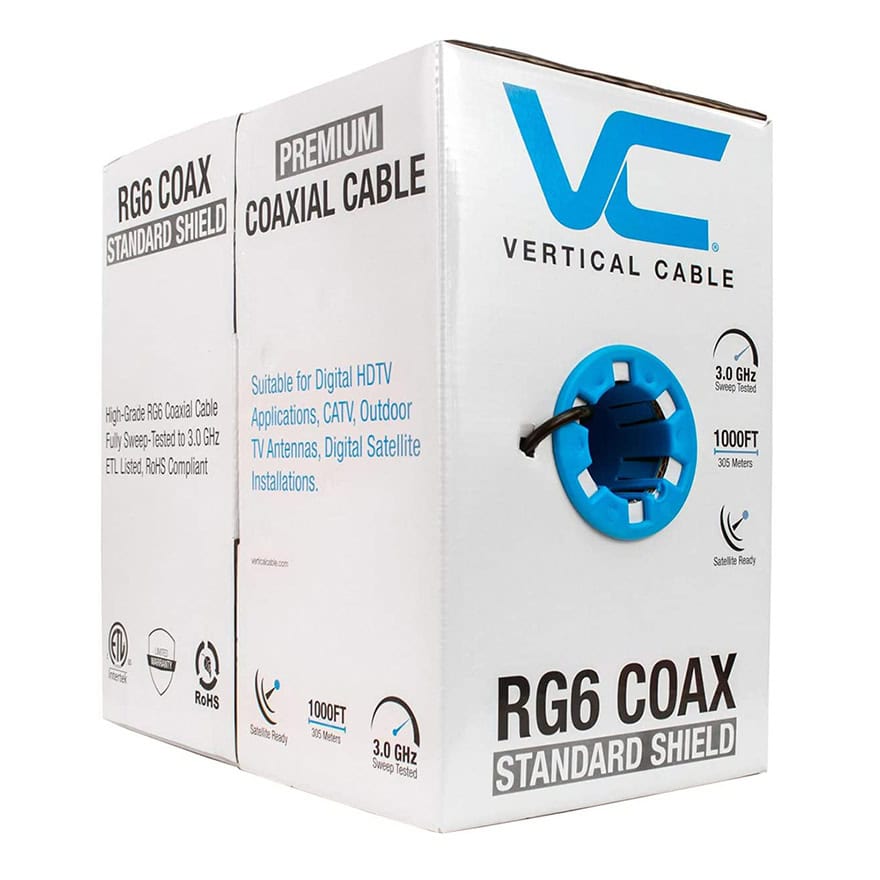

VER1814B - Vertical
Cable 107-1234BK6S1BX RG6
Standard Shield +18 Gauge CCS Conductor Power
Cable (Black)Conveniently
delivered in a 1,000 foot pull box.
Click here to
View Information Sheet
$129.99 Price Includes
Shipping
Price
Includes Shipping within the 48 Cont. United
States
|
| |
|

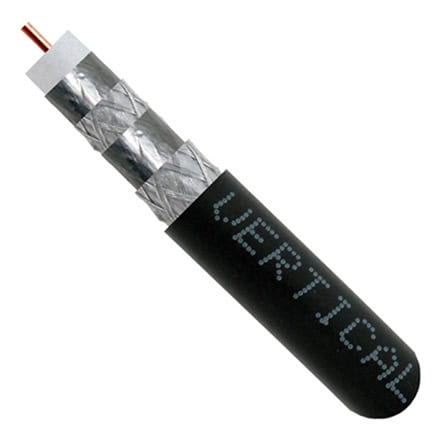

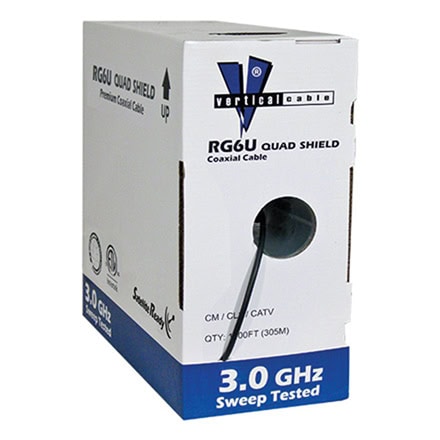

VER1800 - Provide both
versatility and the best quality with the
Vertical Cable 107-1952BK6Q1BX.
Made
with Copper Clad Steel, this RG-6 75 OMH
18AWG Quad Coax offers durability AND signal
integrity that lasts!

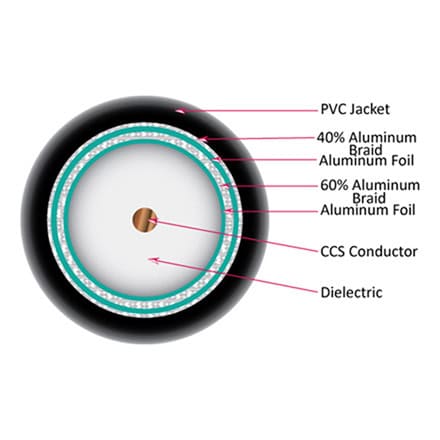

| Conductor
Material: |
Copper
Clad Steel (Solid) |
| Diameter |
1.024 mm (18AWG) |
| Insulation
Material: |
Foamed PE |
| Diameter: |
4.57 mm |
| Color: |
White |
| First Shield Outer
Conductor Material: |
Aluminum/PET-Foil
Bonded |
| Second Shield
Outer Conductor Material: |
Aluminum Wire |
| Third Shield |
Aluminum/PET Foil |
| Fourth Shield |
Aluminum Wire |
| Construction |
0.16x2x16 (40%) |
| Jacket Material: |
PVC (Black) |
| Diameter: |
7.6 mm |
| DC Resistance |
=120?/km |
| Nominal
Capacitance: |
52±2pF/m |
| Impedance: |
75±3 Ohms |
|
VER1800 - Vertical
Cable 107-1952BK6Q1BX RG-6 75 OMH 18AWG Quad Coax
(Black)
Conveniently delivered in
a 1,000 foot pull box.
Click
here to View Information Sheet
$149.99
Price Includes Shipping
Price Includes Shipping
within the 48 Cont. United States
|
| |
|

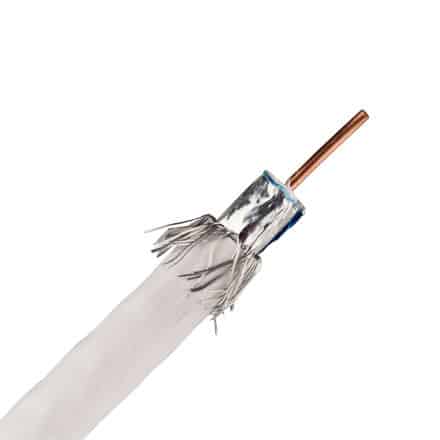

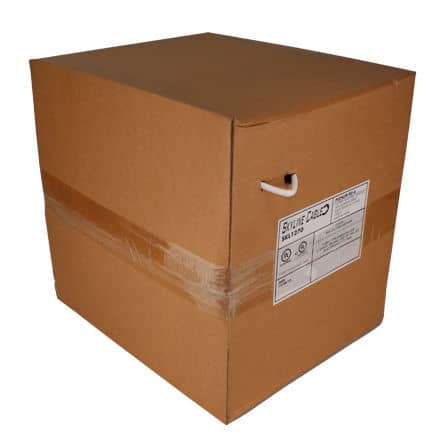

SKL1270 - Skyline™
PLENUM RG-6 3GHz 18 Gauge CCS Single Coaxial
Cable, 1000ft Reel-in Box (White)
Our
Skyline™ coaxial cables provide both
versatility and the best quality. This Copper
Clad Steel cable gives you durability and
cost-efficiency, which is great for your
installs and your budget. 1000ft of this
professional grade RG6 Coaxial Cable is
included in a long-lasting and dependable
box.
Plenum
a Plenty!: This plenum coax cable will ensure
that your installs are up to code and will
pass inspection. The fire retardant jacket is
safe to run every time!
Dependability
in a Box: Our bulk wire boxes stand tall as
they have the strength and durability to
withstand multiple installs. This brute of a
box will handle any harm that comes its way!
Made to perform for a lifetime, rest assured
knowing your wires are always protected.
Unrivaled
Clarity: Our copper cables have a 99.9997%
oxygen free copper conductor that ensures
signal integrity.
Effortless
Install: Our Skyline™ cable has
easily-strippable jackets and sequential
distance markings making your install
effortless.
| 18
awg Copper Clad Steel |
| 60%
Aluminum braid 34 awg |
| Plenum
rated PVC Jacket |
| CMP
(UL), C (UL) |
| Velocity
of Propagation |
84% |
| Impedance |
75.0
+/- 3.0 ohms |
| Professional
Grade |
| Capacitance |
15.5pF/FT.
Nom. (50.9pF/m Nom.) |
| Swept-tested
to 3GHz |
| Footage
marked |
| 1000ft
Reel-in Box |
| Color |
White |
|
SKL1270 - Skyline™ PLENUM RG-6 3GHz 18
Gauge CCS
Single Coaxial Cable, 1000ft Reel-in Box (White)
$314.99 Price Includes
Shipping
Price
Includes Shipping within the 48 Cont. United
States
|
| |
|

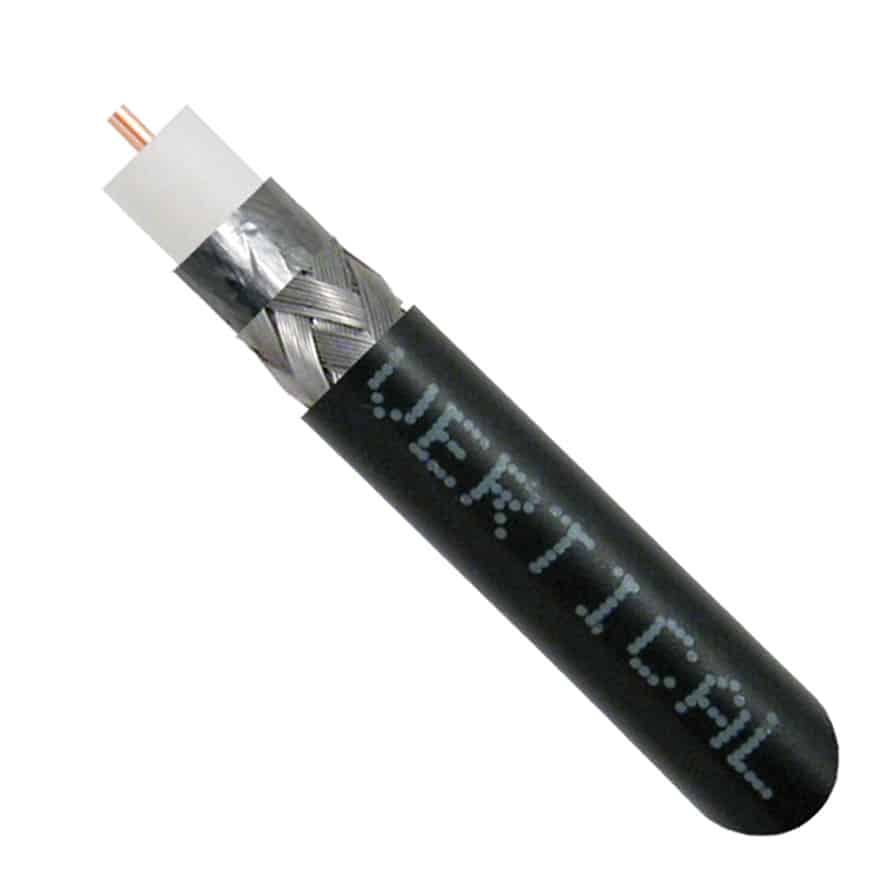

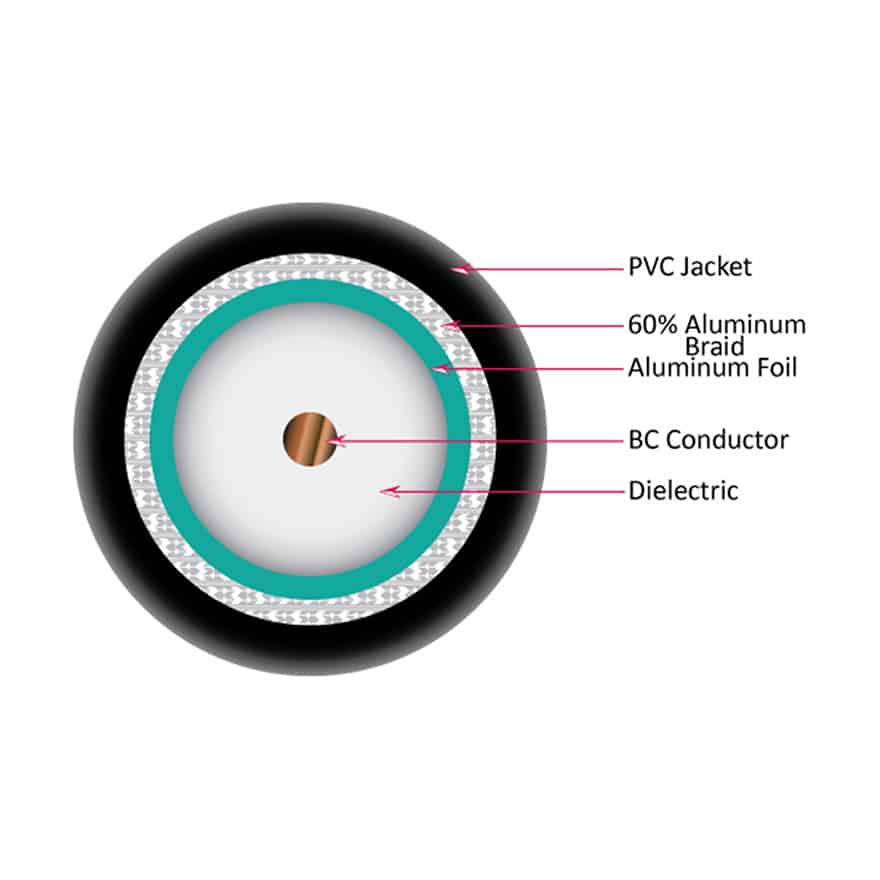

VER1002 - Vertical
Cable® 107-1032BK/R11 RG-11 Standard Shield
Coaxial Cable, 14AWG Solid (Black | 1,000ft
Spool)
Some installations
call for big cables. This RG-11 Standard
Shield Coax from Vertical Cable can handle
these jobs. It features a 14AWG solid
conductor and is wrapped in a PVC jacket. As
far as performance goes, it boasts 75 Ohm
impedance and is sweep tested to 3GHz to
ensure high quality signals over the longest
distances. What's more, it's CL2 and CM rated
and ETL and RoHS compliant!
Tough for Long Runs: Vertical Cable's RG-11
Coax cable is thick and durable - up to just
about any abuse. It's ideal for utilization
in long-distance cable runs.
Wooden Spool: This
thousand foot length of cable is wrapped
around a sturdy wooden spool - simple, strong
and secure.
| Construction |
Conductor
Copper Clad Steel (CCS)
Size: 1.63±0.01mm (14AWG)
Dielectric: Foam PE
Size: 7.11±0.05mm
Shield: Bonded Aluminum Foil
Braid: Alu-Mag
Coverage: 60%x16x6x0.16±0.005mm
Jacket: PVC
Size: 10.03±0.2mm |
| Electrical
Characteristics |
Sparker Test:
4000VAC
Impedance: 75±3 Ohm
Capacitance: 54±3pF/m
Velocity of Propagation: 85%
Return Loss: 23dB min. (5-2300MHz) |
| Mechanical
Characteristics |
Operating
Temperature Range: -20°C
to 70°C |
| Features |
75 Ohm Impedance
Sweep Tested to 3GHz
TEL, RoHS Compliant |
| Jacket Color |
Black |
|
VER1002 - Vertical Cable®
107-1032BK/R11
RG-11 Standard Shield Coaxial Cable, 14AWG Solid
(Black | 1,000ft Spool)
$199.99
Price Includes Shipping
Price Includes Shipping
within the 48 Cont. United States
|
| |
|
Actuator
Power Wire
16 AWG
2Conductor PVC Shielded,
Construction: Bare
copper conductors, aluminum/polyester foil
shield, with tinned copper drain wire, PVC
insulation and jacket, ripcord, made in the
USA.
Specifications
Gauge:
16
Conductors: 2
Riser
Shielded
Stranded
Nom. O.D.: 190
UL Listings: CL3P/FPLP
Jacket color: Gray
|
Actuator Power Wire
16 AWG 2Conductor PVC Shielded
.40 Cents per Foot -
Avialable in 25', 50', 75', 100', 150', 200'
& 250'
If you need a longer run, please call or write.
Price
Includes Shipping within the 48 Cont. United
States
APW
Actuator Power
Wire - Click on Drop Down Button to Select Length
|

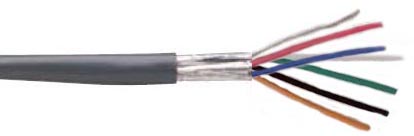

Actuator Sensor and Servo
Motor Wire
22 AWG 6
Conductor PVC Shielded
Construction: Bare
copper conductors, aluminum/polyester foil
shield, with tinned copper drain wire, PVC
insulation and jacket, ripcord, made in the
USA.
Specifications
Gauge: 22
Conductors: 6
Riser
Shielded
Stranded
Nom. O.D.: .167
UL Listings: CL3P/FPLP/CMR
Jacket color: Gray
|
Actuator Sensor and Servo Motor Wire
22 AWG 6 Conductor PVC Shielded
.40 Cents per Foot -
Avialable in 25', 50', 75', 100', 150', 200'
& 250'
If you need a longer run, please call or write.
Price
Includes Shipping within the 48 Cont. United
States
APW
Actuator
Sensor and Servo Motor Wire
Click on Drop Down Button to Select Length
|
Big Dish Satellite Ribbon
Comscope
Satellite Ribbon like we once had, is no
longer available. So we are offering Dual RG6
Coax Cable
with Actuator Power Wires and Actuator Sensor
Wires and Servo Motor Wires - Sold by the
Foot!
Dual RG-6
3GHz 18 Gauge CCS Dual Coaxial Cable
Actuator
Power Wire - 16 AWG 2Conductor PVC Shielded,
Construction: Bare copper conductors,
aluminum/polyester foil shield, with tinned
copper drain wire, PVC insulation and jacket,
ripcord, made in the USA.
Specifications
Gauge: 16
Conductors: 2
Riser
Shielded
Stranded
Nom. O.D.: 190
UL Listings: CL3P/FPLP
Jacket color: Gray
Actuator
Sensor and Servo Motor Wire - 22 AWG 6
Conductor PVC Shielded
Construction: Bare copper conductors,
aluminum/polyester foil shield, with tinned
copper drain wire, PVC insulation and jacket,
ripcord, made in the USA.
Specifications
Gauge: 22
Conductors: 6
Riser
Shielded
Stranded
Nom. O.D.: .167
UL Listings: CL3P/FPLP/CMR
Jacket color: Gray
|
Big Dish
Satellite Ribbon
Since the
Comscope Ribbon is no longer available, we
have come up with individual runs of Dual RG6
Coax Cable, Actuator Power Wires and Actuator
Sensor Wires and Servo Motor Wires. Sold by
the Foot!
We are
offering a better price when you purchase all
3 at the same time.
$1.15 per Foot - Avialable
in 25', 50', 75', 100', 150', 200' & 250'
If you need a longer run, please call or write.
Price
Includes Shipping within the 48 Cont. United
States
APW
Big
Dish Satellite Ribbon
Click on Drop Down Button to Select Length
|
|
