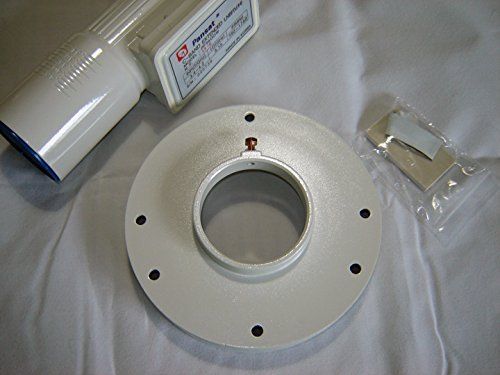

PF9600W PANSAT Wideband C-Band LNBF
$48.00 each
$58.00 Includes Shipping within the 48 Cont. United States

• Input Frequency Range : 3.4 ~ 4.2 GHz

• Output Frequency Range : 950 ~ 1750 MHz

• L.O. & Stability (Over Temp.) : 5.15 GHz +/- 2MHz

• Noise Temp.(@ + 25°C) : 17 degree K max.

• Input VSWR : 2.5 : 1 Typ.

• Image Rejection : 40 dBc Min.

• Conversion Gain : 65 dB Typ.

• Output VSWR : 2 : 1 Typ.

• Gain Flatness : 6 dBp-p Max.

• Gain Ripple(@per Channel) : +/- 0.75dB Max.

• P1dB Gain Compression Point : +5 dBm Max

• Output Impedance : 75 O

• Leakage(@ Input Port) : -60 dBm Max.

• Phase Noise : -80 dBc/Hz(@ 10KHz), -95 dBc/Hz(@ 100KHz), -110 dBc/Hz(@ 1 MHz)

• Power Supply : +12 to +24V DC

• Requires Current : 150 mA Max.

• Operating Temperature : -30°C ~ +60°C

• Storage temperature : -40°C ~ +80°C

• Relative Humidity : 0% ~ 95% RH

• Input Waveguide flange : WR-229

• IF Output Connector : F-Type Female

• Weight : 510g
