GLOBAL STAR 300 SATELLITE SYSTEM

Item # GLOBAL STAR SYS 300 - $399.00 PLUS Shipping

Please write or call with address for a shipping quote: rickcaylor@aol.com or 816-228-1801
Due to the size of the 1.2 Meter Satellite Dish and Box, it ships by Truck Line
Truckline Shipping costs have been ranging from $325.00 to $375.00.

Includes the SX87 SE WL Satellite Receiver that can do DVB-S, DVB-S2, QPSK, 8PSK, 16APSK, MPEG2, MPEG4 & MPEG5 Standard and High Definition.
GEOSATpro 1.2 Meter Satellite Dish, to gather a stronger Signal and have Less Rain Fade.
Also includes PLL322S-2 DMSI Dual Outlet LNBF and an Installation Kit that includes 1 - 25' and 1 - 75' Black RG6 Coax Cables.

Add a Signal Meter SF95 for $14.95 - This can be helpful in aiming in the dish to locate the satellite.

SX87 SE WL Octagon Satellite Receiver

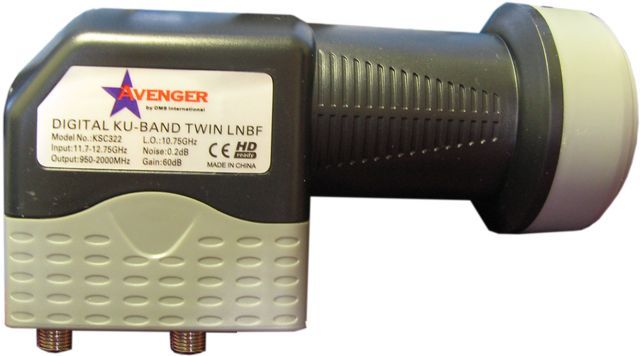

PLL322S-2 DMSI
Dual Outlet LNBF

Installation Kit

4 - 5/16" x 2 1/2" Lag Bolts
1 - 75' RG6 Coax Cable
1 - 25' RG6 Coax Cable
10 - Cable Nailer Clips
1 - Grounding Block
4' of Ground Wire
1 - Hand Compass
1 - Hand Level

GEOSATpro 1.2 Meter Satellite Dish

DISH Does Not come with Pole.
Heavy Duty 3 inch Dual U-Bolt Mounting Bracket Suitable for Post or Motor Mounts.
Easily inverted for use with top loading motor mounts.

It is best to purchase a 8' - 2.37" Chain Link Fence Post from your local Hardware Store
and place in the ground with 3 - 50 lb bags of Concrete.

"OCTAGON SX87 SE WL HD H.265 S2+IP Receiver Dual Core (2x800MHz) ARM Cortex-A7 Dual CPU Multimedia Multistream Black"

With the new SX87 SE WL HD H.265 S2+IP you get a multimedia box with Linux operating system, Dual-core 32-bit CPU and razor-sharp resolution. Now also with HDMI CEC support. The box is characterized by powerful hardware and a wide range of entertainment options. It supports all common functions that a modern multimedia box must have.

Hardware: the technology under the hood of the OCTAGON SX87 SE WL HD H.265 S2+IP
The engine room of the SX87 SE WL HD contains the latest hardware, with which almost all your multimedia requirements can be met. A Hisilicon 32-bit processor is installed as well as a multi-core graphics processor. This equipment not only ensures smooth playback of your multimedia content, but also fast boot times and fast navigation within the multilingual menus.

Full HD resolution H.265 HEC 1080P
With the OCTAGON SX87 SE WL HD H.265 S2+IP receiver you can enjoy your content in razor-sharp FHD resolution at 60 frames per second with 1920 x 1080 pixels. The SX87 WL HD decodes the content in the HEVC/H.265 standard, which helps to protect your bandwidth, among other things. The OCTAGON SX887 WL HD H.265 IP supports other standards such as MPEG2, H.264 and QPSK, 8PSK, 16APSK & 32APSK, as well as almost all video, audio and image formats.

Entertainment functions and other features of the small S2+ multimedia box
The OCTAGON SX87 SE WL comes with the extremely popular and easy-to-use Linux operating system. This allows you to benefit from the possibility of constantly expanding the entertainment offer. Numerous free apps such as YouTube, media libraries and numerous popular media players are available for this purpose. There are almost no limits to entertainment enjoyment and you will get your money's worth as a multimedia, series or film fan!

Variety of interfaces and connectivity
OCTAGON has given the SX87 SE WL HD H.265 S2+IP the most common interfaces and thus ensured a high level of connectivity for the multimedia box. There is a USB port on both sides of the S2+Multimedia box. On the back of the SX87 SE WL HD H.265 S2+IP you will also find an HDMI 1.4b connection, an S/PDIF interface, an Ethernet LAN connection and a DVB-S2 satellite tuner. An integrated card reader and a connection for the included external IR receiver are also installed.

Main features:
- ARM Cortex-A7 dual processor
- GX6613H2 GX-National
- Dual core 32-bit (2x 800MHz) 3000 DMIPS
- Multi-core high performance GPU
- Flash memory 128MB
- RAM 256MB DDR3
- Fast boot time of 15 seconds
- LAN Ethernet ( 100Mbps)
- 4-digit 7-segment display
- card reader + hardware blind scan (blind search)
- DVB-S2 tuner + multistream support
- HDMI 1.4b - HDCP1.4
- USB 2.0
- built-in WiFi module (150Mbit WiFi built-in)
- infrared -Hidden mount receiver
- HDMI CEC support
- Learnable multifunction remote control

Properties & functions:
- Linux OS operating system
- Resolution: FHD 1080P H.265 HEVC (1920 x 1080)
- Customer-specific extensions and logo support
- Internet Radio & YouTube
- Media libraries of the public broadcasters
- USB 2.0 connection
- User-friendly OSD interface
- WebIF & FTP access
- Card reader
- Recording & TimeShift
- Network 10/100Mbit LAN
- Built-in WiFi (internal)
- 3G modem support via USB port
- DLNA player (DMS, DMR) & built-in Media Player
- Playback of M3U playlists
- iOS and Android app (.apk) remote control & web browser (WebIF)
- Unicable & FastScan support
- DiSEqC 1.0, 1.1, 1.2 and USALS support
- EPG - Electronic program guide
- High resolution OSD UI user interface
- 4x programmable buttons on the remote control
- Direct buttons for WebTV, VOD and YouTube
- Subtitles & Teletext (Videotext) Support
- 0.5W Standby
- Dimensions (LxDxH) 125 x 95 x 25mm

Front:
- LED display (red / green)
- 4-digit 7-segment display
- IR sensor (infrared receiver)

Rear:
- DVB-S2 tuner LNB input
- digital audio socket (S/PDIF)
- AV - audio video socket - jack to RCA
- HDMI 1.4b output
- network 10/100Mbit connection
- DC-12V power supply
- CA card reader

Side (left):
- USB 2.0 port
- LED/IR (external display or IR infrared receiver) connection
- Recovery (RESET) button for maintenance & service

Scope of delivery:
- Receiver OCTAGON SX87 WL HD H.265 S2+IP
- Learnable remote control
- Power supply adapter
- HDMI cable
- IR infrared receiver
- Operating instructions (German & English)
- 2 x batteries

Tuner & Demodulator:
- RDA5815m & S2 GX1133

GeoSatpro 1.2 Meter Offset Satellite Dish

Antenna Size 1.2 Meter (48 Inches)
Offset Angle 27.3 deg.
Aperture Efficiency 80%
Horizontal Axis 120 cm (47.24 in)
Vertical Axis 135 cm (53.15 in)
Assembled Weight 12.25 kg (27 lbs)
Gain @ 12.5 GHz 43dB
Focal Length 60 cm (23.62 in)
F/D Ratio .5
Mount Type U-Bolt Az / El with Fine Tuning Adjustment
Azimuth Ajustment 360 deg.
Elevation Adjustment 15 - 90 deg.
Mast Diameter Minimum: 55mm (2.16"),  Maximum 76 mm (3")
Operating Temperature -40 C - +60 C
Operational Wind Speed 90 km/H (56 mph)
Survival Wind Speed 180 km/H (112 mph)
Finish Texture Polyester Powder Coating
Material Gavanized Steel
LNB Mount Type Universal 40 mm / 23 mm clamp
Color Grey

Includes the SX87 SE WL Satellite Receiver that can do DVB-S, DVB-S2, QPSK, 8PSK, 16APSK, MPEG2, MPEG4 & MPEG5 Standard and High Definition.
GEOSATpro 1.2 Meter Satellite Dish, to gather a stronger Signal and have Less Rain Fade.
Also includes PLL322S-2 DMSI Dual Outlet LNBF and an Installation Kit that includes 1 - 25' and 1 - 75' Black RG6 Coax Cables.

Item # GLOBAL STAR SYS 300 - $399.00 PLUS Shipping

Please write or call with address for a shipping quote: rickcaylor@aol.com or 816-228-1801
Due to the size of the 1.2 Meter Satellite Dish and Box, it ships by Truck Line

Add a Signal Meter SF95 for $14.95 - This can be helpful in aiming in the dish to locate the satellite.
