| DM2800 Opticum DiSEqC H to H Motor and Mount |
NOW IN STOCK!!!
DM2800 Opticum DiSEqC H to H Motor and Mount
Now
Available with either a 42MM Shaft or a 50MM Shaft or add a
Sleeve to make the 50MM Shaft to 60MM.
The 90CM GEOSATpro Satellite Dish uses the 42MM Shaft, while the
1.2 Meter GEOSATpro Satellite Dish, needs 60MM.
|
|
|
|
|
|
$219.00 USD Includes Shipping within the 48 Cont. United States
Actual price is $199.00 plus $20.00 Shipping and Handling
Optional PVC Sleeve to change the size of the Motor Shaft from 50MM OD to 60MM OD
4 1/2" long - 2" ID and has a cut long ways, to make it able to flex, to be able to get it over the ridge end on the motor shaft. We place several 1/2" round
sticky intertube patches on the inside of the PVC sleeve, so when the sleeve is compressed in the clamp on the satellite dish, it will tighten good and not slip.If you have an Older SG2100 or SG6100 DMSI Motor, the 40MM Shaft can be removed from them and it will fit this motor. Most 90CM dishes have the 40MM Sleeve. This would be a Powerful Motor for a 90CM Dish.
$6.99 USD - No Additional Shipping when purchased with the Motor.
If Not Purchasing the DM2800 Opticum Motor, but would still like to purchase the PVC Sleeve
$6.99 USD Plus $10.00 for Shipping within the 48 Cont. United States
Total Price $16.99
We tested this motor out at several different locations in the US on 1 Meter and 1.2 Meter steel satellite dishes and have been pleased with the results.
The Shaft size on the Motor is 2" / 50MM OD.
If your using the GEOSATpro 1.2 Meter Satellite dish, you will need to sleeve the shaft to a larger size to fit the AZ/EL Mount tight.
We are offering an Optional PVC Sleeve for $6.99 to increase the Shaft Diameter to 60MM / 2.375 Inches so it fits the GEOSATpro 1.2 Meter Satellite Dish which accepts a shaft size of Minimum: 55mm (2.16"), Maximum 76 mm (3"). This sleeve is 4 1/2" long - 2" ID and has a cut long ways, to make it able to flex, to be able to get it over the ridge end on the motor shaft. We place several 1/2" round sticky intertube patches on the inside of the PVC sleeve, so when the sleeve is compressed in the clamp on the satellite dish, it will tighten good and not slip.
Specifications:
DM2800 Opticum DiSEqC H to H Motor and Mount
Compatiable with All DiSEqC 1.2 Receivers
Drive Satellite Dish up to 1.4 Meters (30lbs Maximum) at High Speed
Quick Installation by only 1 Coax Cable to power both the Motor and the LNBF
DiSEqC 1.3/"Go To X (USALS) function" 60 positions
Metal Gear
Motor Shaft - 2" / 50MM OD
Adjustable Hardware Limits
Easy Installation with LED Indicator
Manual EAST / WEST button
Adjustable Dish Tube / Shaft
For Dish up to 1.4 Meters
Motor rotation angle: 150° (80° East ~ 80°West) max.
Rotation speed: 1.9°/s(13V) 2.5°/c(18V)
Power consumption: 50 mA (Standby) / 200 mA (Normal operation) / 350 mA (Maximum)
Increased Precision
Increased ReliabilityHigh Efficiency
Compact Structure
Ultra Low NoiseOptional PVC Sleeve Available for $6.99 to increase the Shaft Diameter to 60MM / 2.375 Inches so it fits the GEOSATpro 1.2 Meter Satellite Dish
DM2800 Opticum User Manual

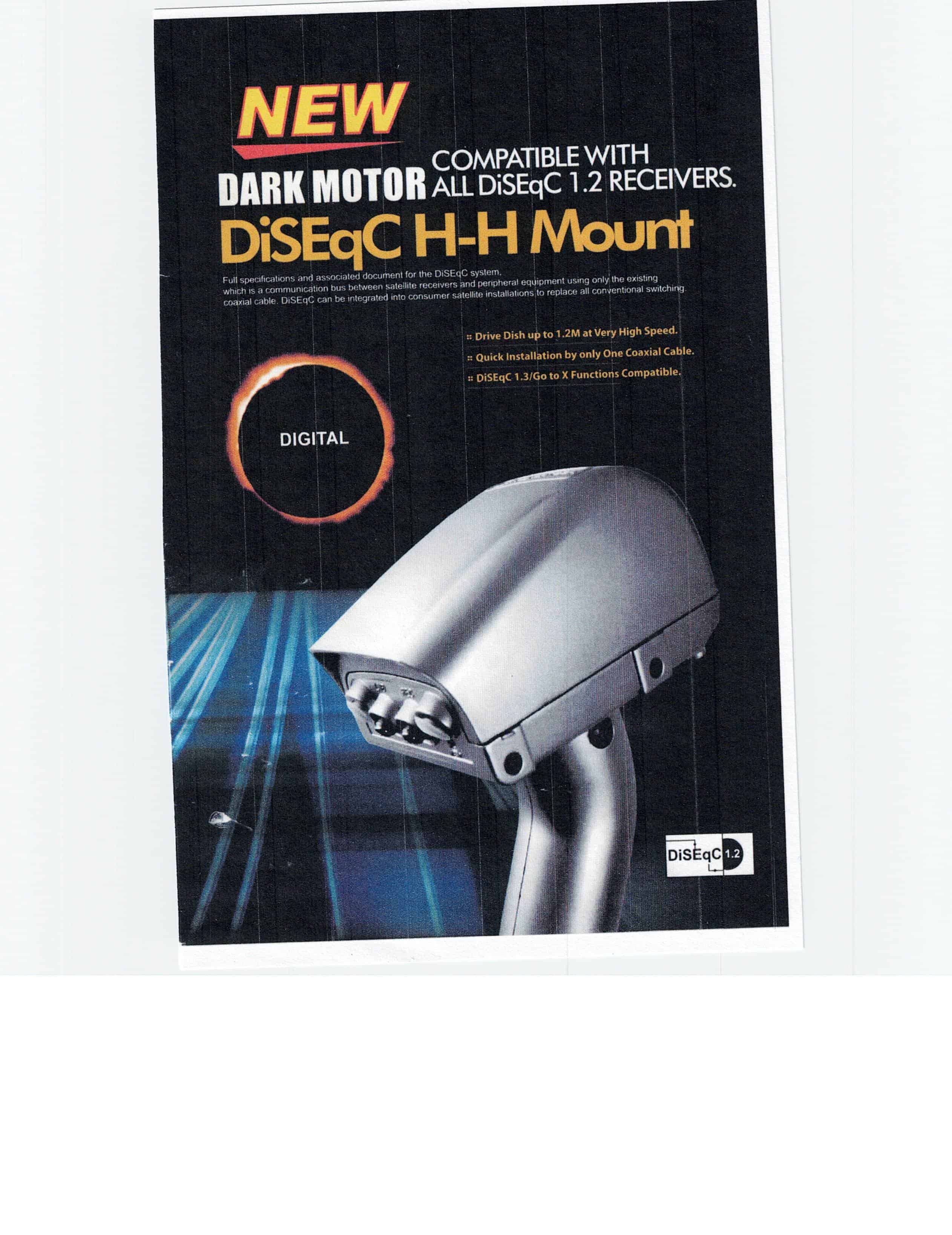

 Cover |

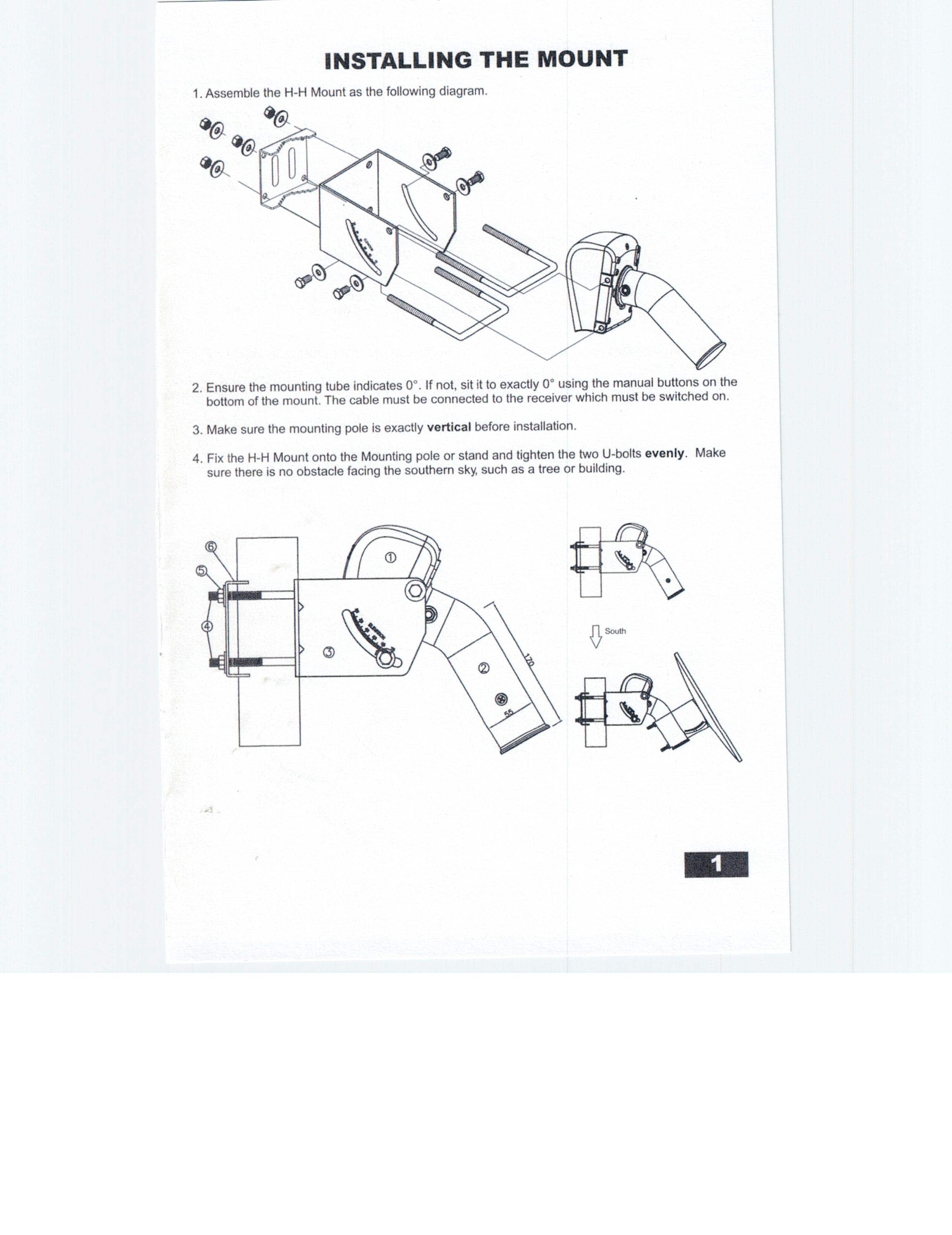

 Page 1 |

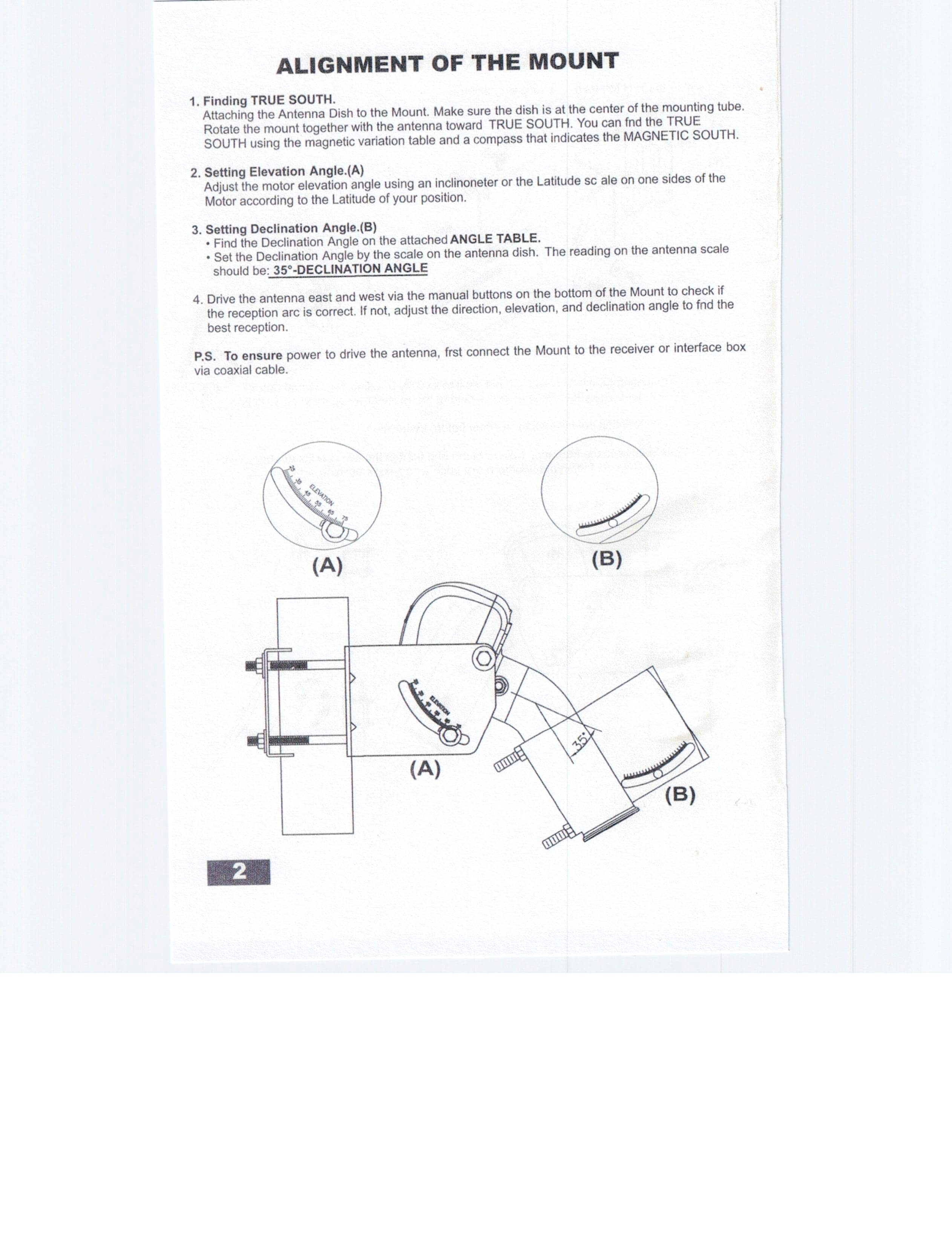

 Page 2 |

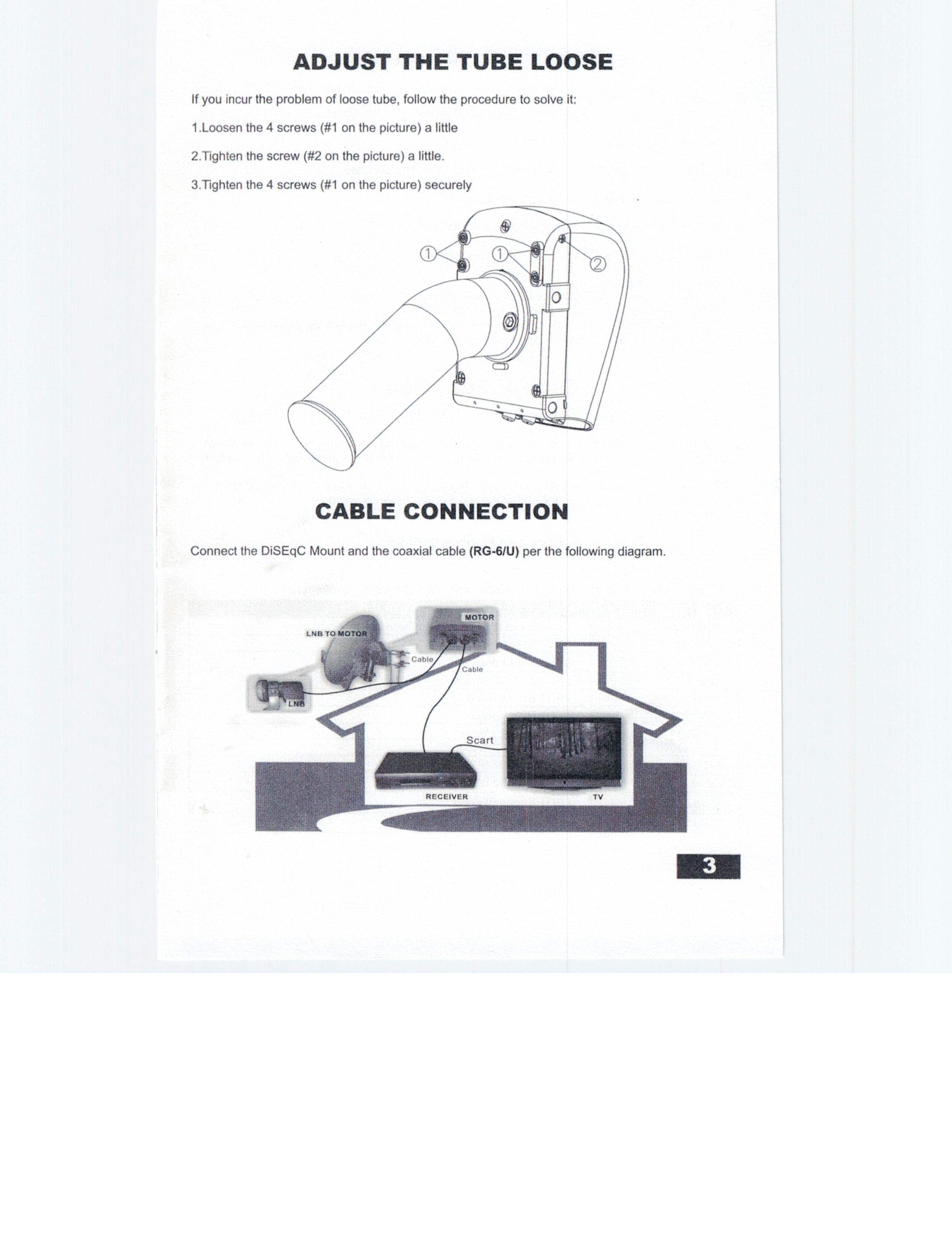

 Page 3 |

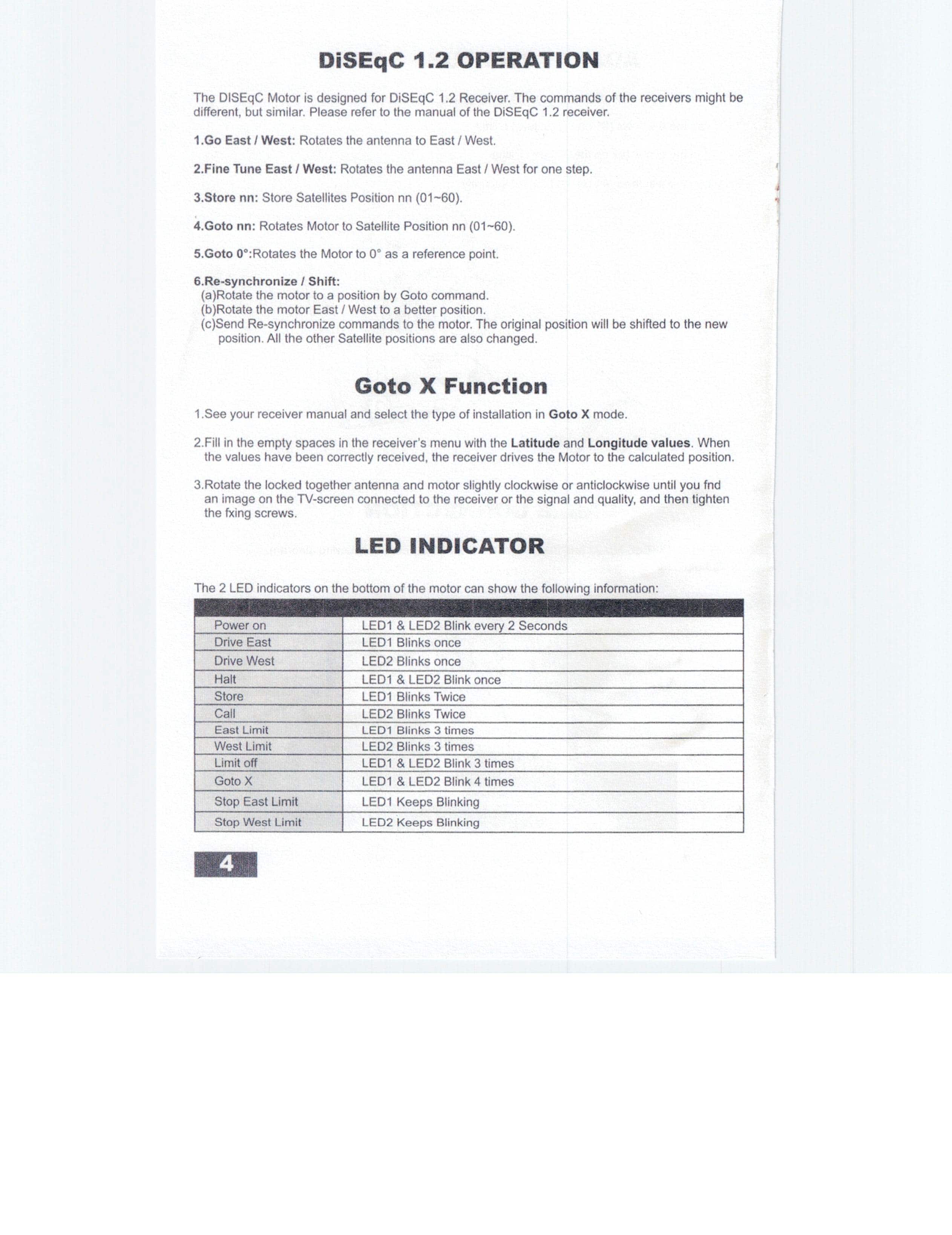

 Page 4 |

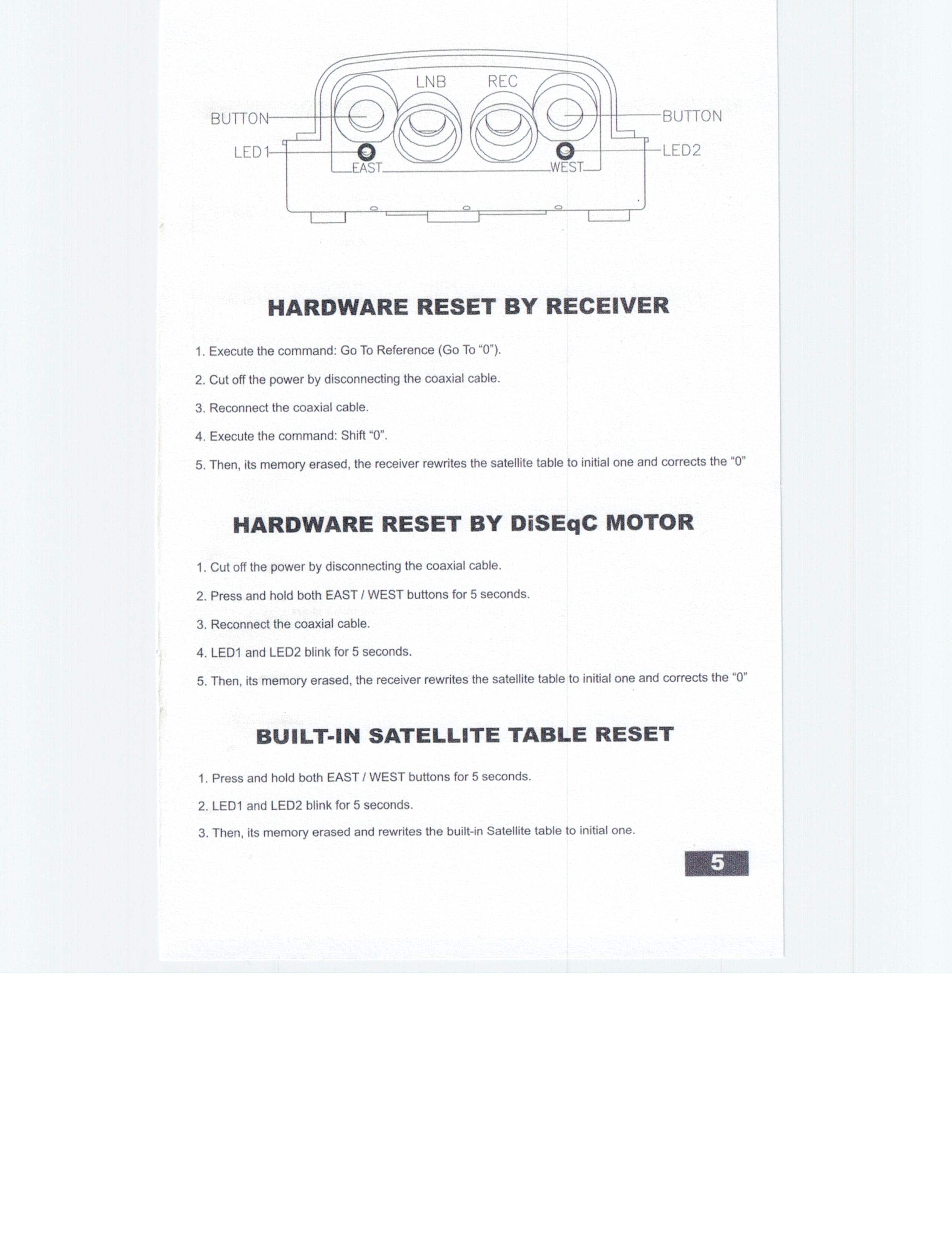

 Page 5 |

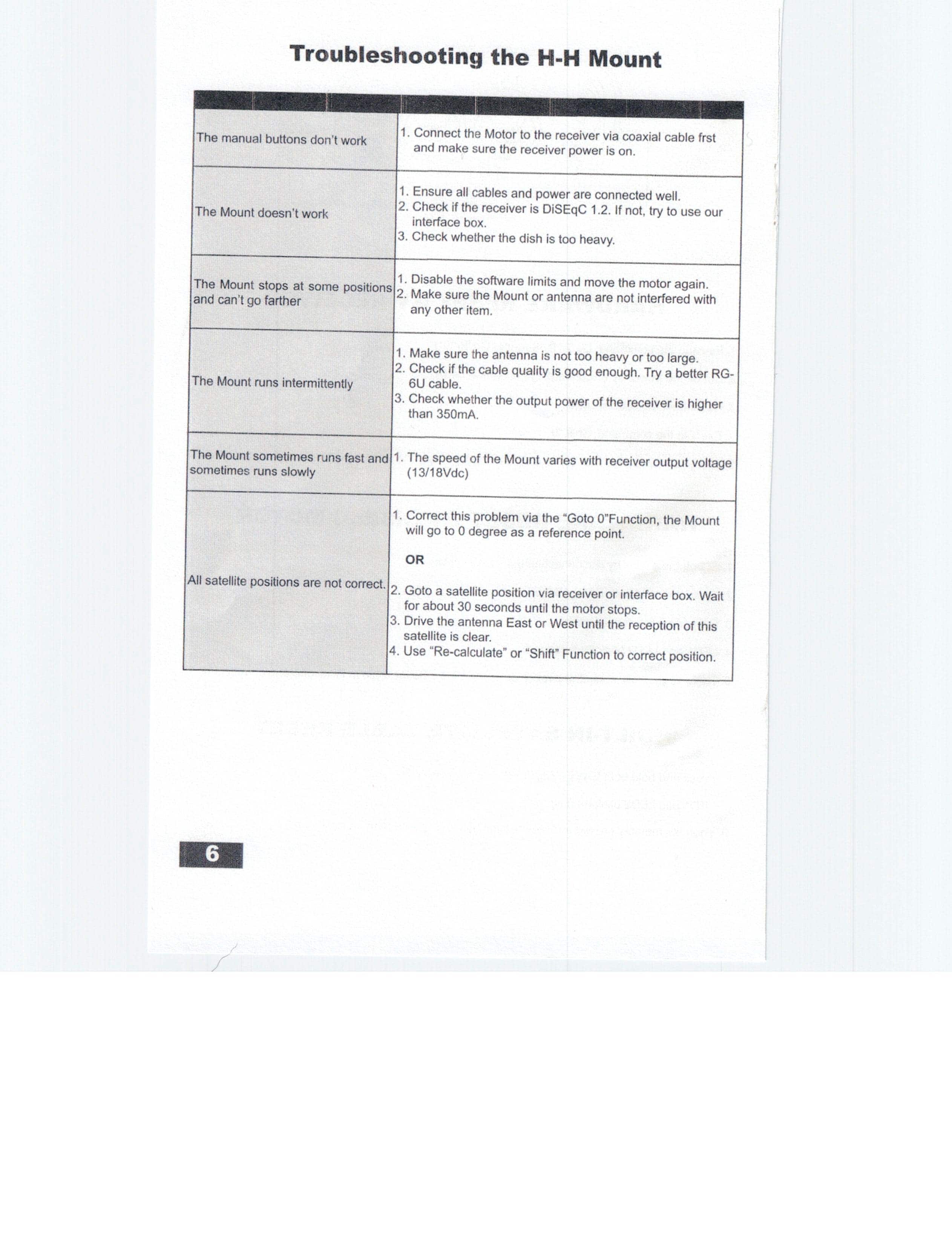

 Page 6 |

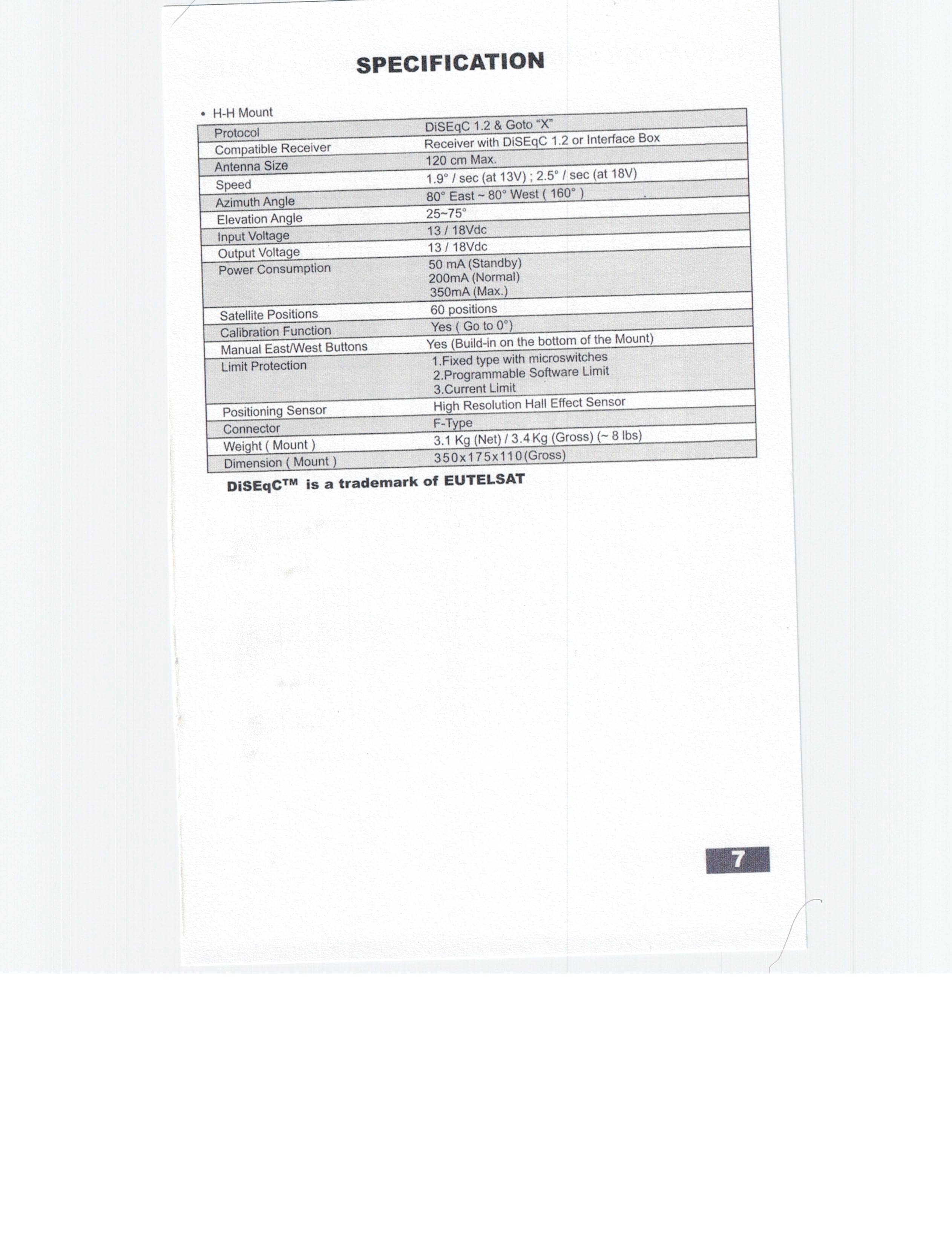

 Page 7 |

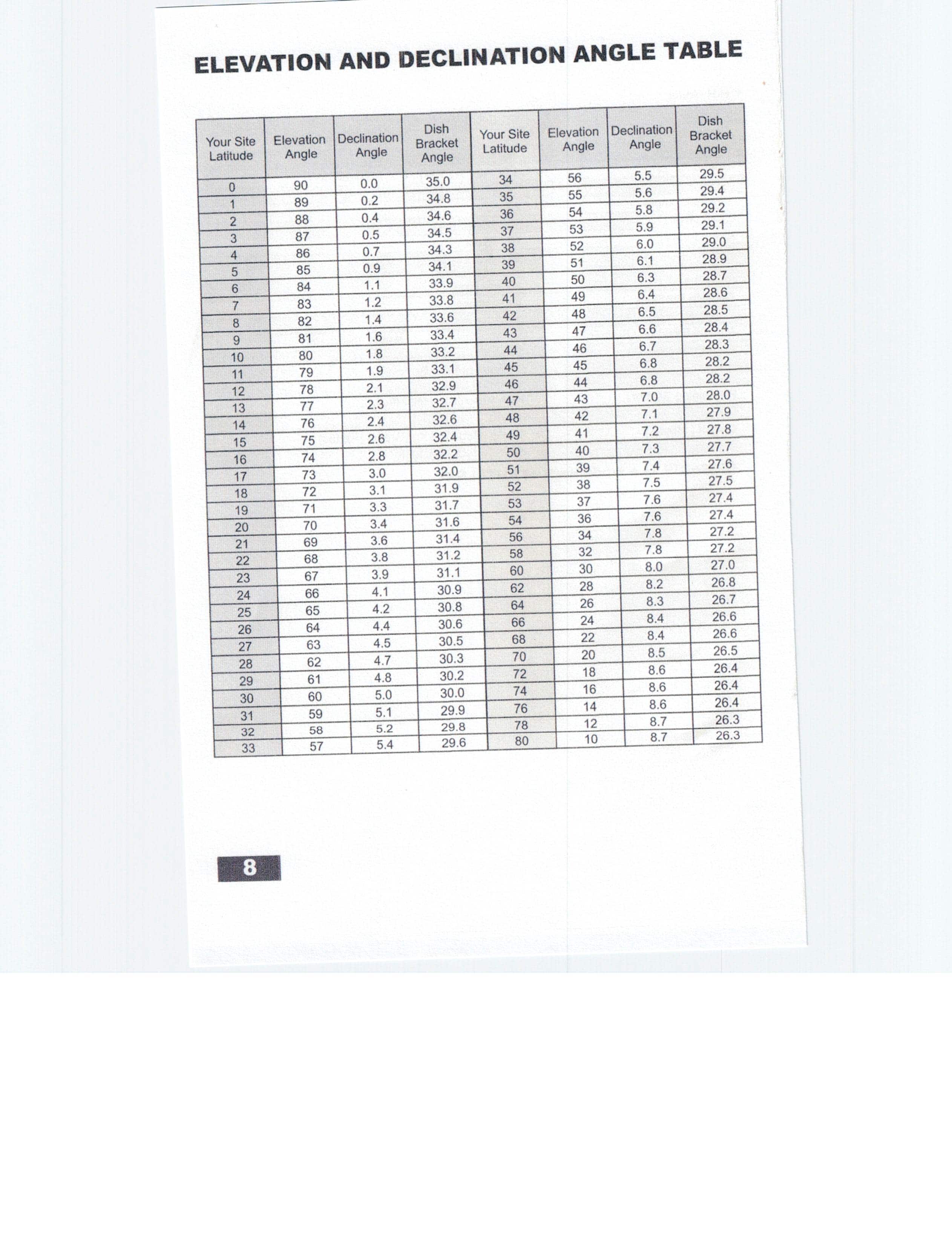

 Page 8 |

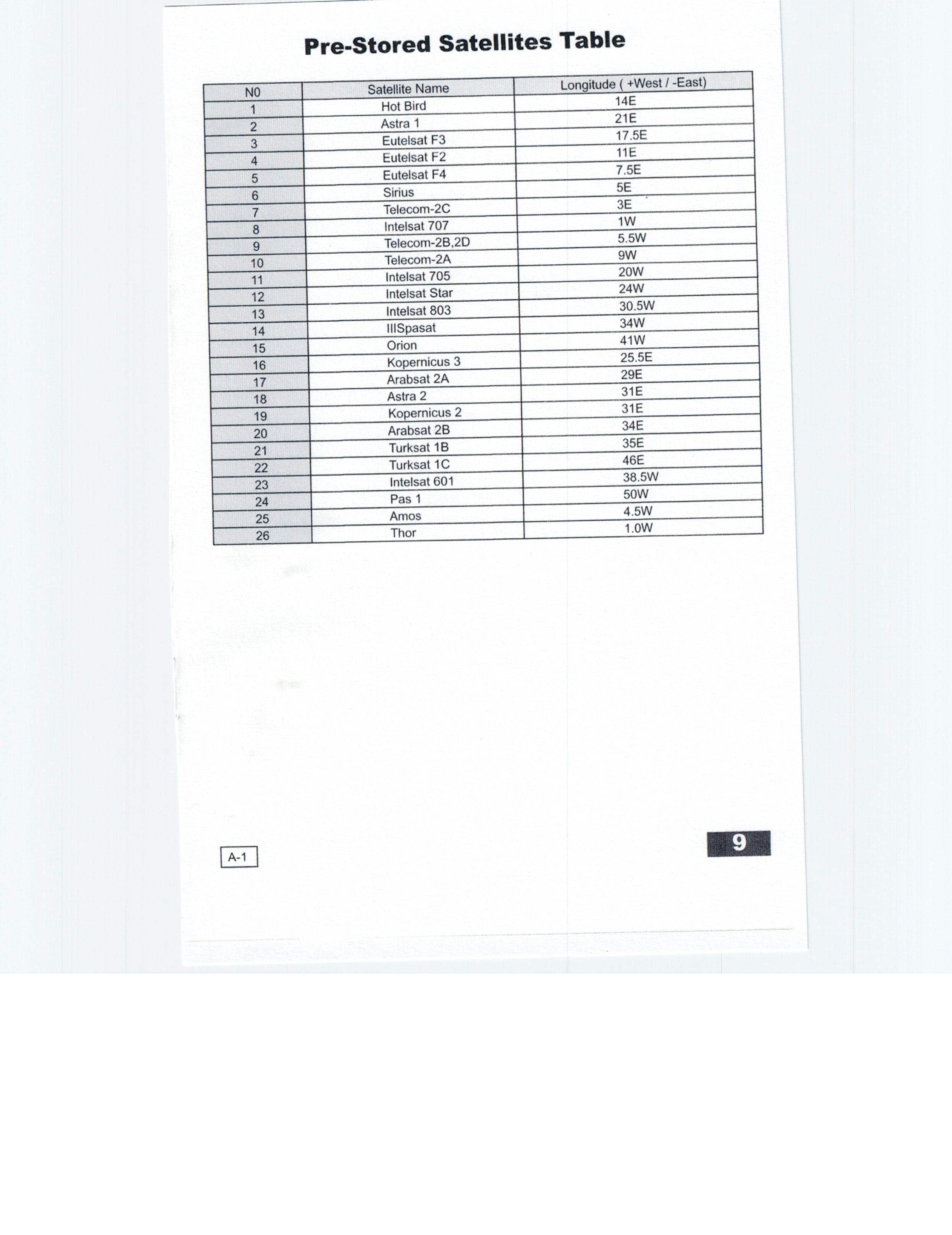

 Page 9 |
 Back |
$219.00 USD Includes Shipping within the 48 Cont. United States
Actual price is $199.00 plus $20.00 Shipping and Handling
Optional PVC Sleeve to change the size of the Motor Shaft from 50MM OD to 60MM OD
$6.99 USD - No Additional Shipping when purchased with the Motor.
If Not Purchasing the DM2800 Opticum Motor, but would still like to purchase the PVC Sleeve
$6.99 USD Plus $10.00 for Shipping within the 48 Cont. United States
Total Price $16.99
