| Ku-Band
Dishes |
& Part # |
COST |

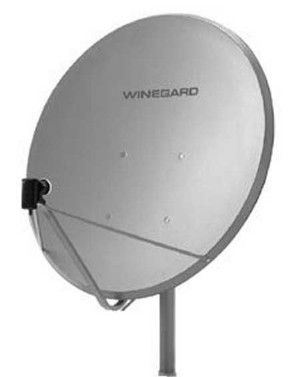

Winegard DS2076
76 CM Satellite Dish
Mounting Type: Ground, Pole
& Wall Mount
Adjustment Type: AZ/EL
Made in the USA
|
WINEGARD
- 76CM Satellite Dish
Made in the USA! |
$ 54.99
Plus $30.00 Shipping
 Select an

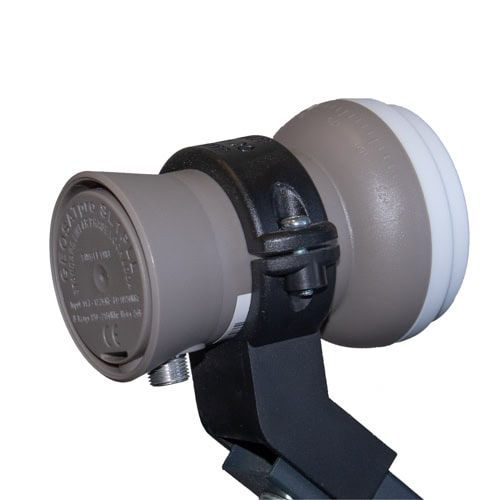

LNBF to go with your dish
With
JSC321S DMSI Ku 0.3db LNBF for 19.00 more.
With
SNH031 Invacom Ku 0.3db LNBF for 32.99 more.
With
QPH031 Invacom Quad LNBF for 59.99 more.
|
ARIZA 90 CM Offset Dish.
Comes without LNBF.
This dish works well with both
Fixed Dish
and Motorized applications.
Specifications:
Electrical
Frequency - 10.95 to 12.75
Aperture Effiency - 72%
Cross-Pol Isolation - 35.6db on Axis
VSWR - 1.3:1 Max
Gain (mid-band) - 39.8 dBi
3dB Beamwidth - 1.8 degrees
First Sidelobe Level - Negative 23.4 dB
Noise Temp at 30° - Elev. 27 K
Mechanical
Reflector Material - Galvanized Steel
Feflector Optics - Offset
Surface Accracy - +/- 0.01 degrees
Mounting Type: Ground, Pole & Wall Mount
Asimuth Adjustments - 360 degrees
Reflector F/D Ratio - 0.65
Offset Angle - 21 degrees
Finish - Powder Coat
Elevation Adjustment - 5 to 75 degrees
Evironmental
- Wind Loading
Operational - 60 mph
Survival - 125 mph
Atmosophere - 10 years
|
ARIZA 90CM
|
$ 69.00
Plus $30.00 Shipping
Select an
LNBF to go with your dish
With
JSC321S Ku 0.3db LNBF for 19.00 more.
With
DSS Circular Polarity LNBF for 24.99 more.
With
SNH031 Invacom Ku 0.3db LNBF for 32.99 more.
With
QPH031 Invacom Quad LNBF for 59.99 more.
|
FORTEC
100 CM Offset Dish.
Comes without LNBF.
This dish works well with both
Fixed Dish
and Motorized applications.
| Type |
Offset |
| Offset
Angle |
24.62
0 |
| Diameter
Short Axis |
100
cm |
| Diameter
Long Axis |
110
cm |
| Aperture
Efficiency |
75%
min. |
| KU
– Band Gain @12.5 GHz |
41.02
dB |
| F/D
Ratio |
0.6 |
| Focus
Length |
600
mm |
| Material |
Galvanized
Steel |
| Finish |
Polyester
Powder Coating |
| Color |
Grey
/ Cool Grey |
| MOUNTING |
| Mounting
Type |
Ground,
Pole & Wall Mount |
| Adjustment
Type |
AZ
/ EL |
| Elevation
Angle Range |
25°
- 77°; 17° - 90° |
| Azimuth |
0°
- 360° |
| Material |
Steel |
| Finish |
Polyester
Powder Coating |
| Color |
Grey
/ Silver Grey |
| Pole
Diameter Acceptable |
38
– 60 mm |
| Net
Weight |
13.0
kg |
| ENVIRONMENT |
| Operational
Winds |
25
m / sec |
| Survival
Winds |
50
m / sec |
| Ambient
Temperature |
-40°C
~ +60°C |
| Relative
Humidity |
0
~ 100 % |
|
 FORTEC
100CM
|
$ 129.00 Plus
Shipping
Send your
Location & ZIP code for exact shipping cost.
Select
an LNBF to go with your dish
With
JSC321S Ku 0.3db LNBF for 19.00 more.
With
DSS Circular Polarity LNBF for 24.99 more.
With
SNH031 Invacom Ku 0.3db LNBF for 32.99 more.
With
QPH031 Invacom Quad LNBF for 59.99 more.
|

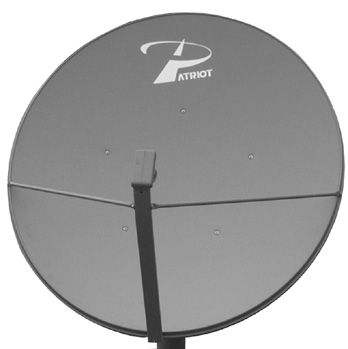

Patriot 120CM Satellite Dish
Comes without LNBF.Specifications
| Type |
Offset |
| Diameter |
120 cm |
| Gain Ku 11.7 GHz dBi |
42.5 |
| Aperture Efficiency |
70% min. |
| 3dB Beamwidth |
.97 |
| Avg. 1st Side Lobe |
-23dB |
| Cross Polarization |
>30dB |
| VSWR Max. |
1.3:1 |
| Color |
Grey / Cool Grey |
| MOUNTING |
|
| Mounting Type |
Fix Mount, Pole Not
Provided |
| Offset Angle |
27.7 |
| F/D |
.5 |
| Operational Wind |
40 MPH |
| Survival Wind |
100 MPH |
| Operational Temperature |
-20 to 140 F |
| Rain |
Operational
1/2" / Hr
Survival 3" / Hr |
| Ice |
1"
Radial or 1/2" + 60 MPH Wind |
| Pole Diameter Acceptable |
2 7/8" - 75 mm |
|
PATRIOT
120CM
shows a DSS LNBF.

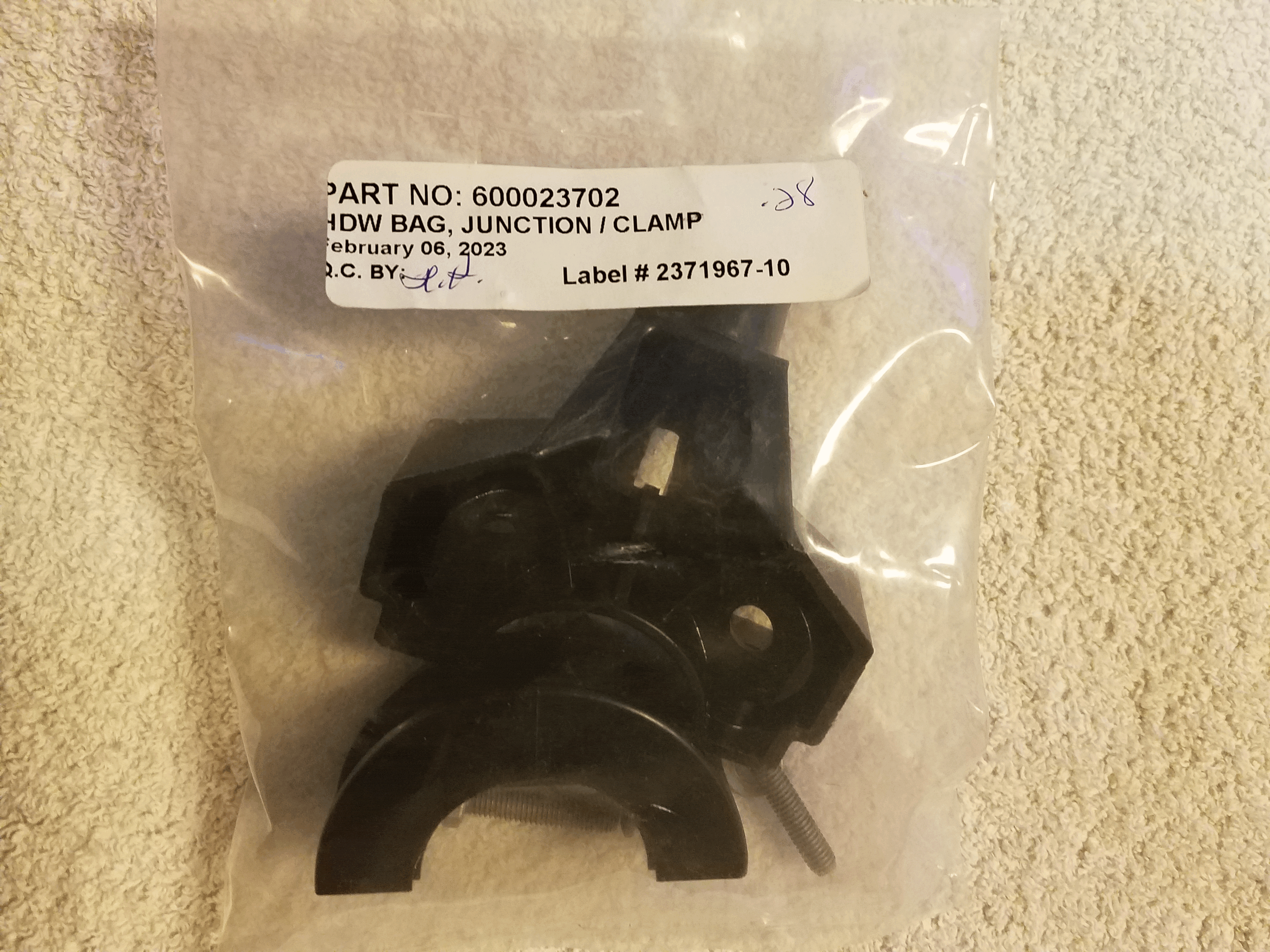

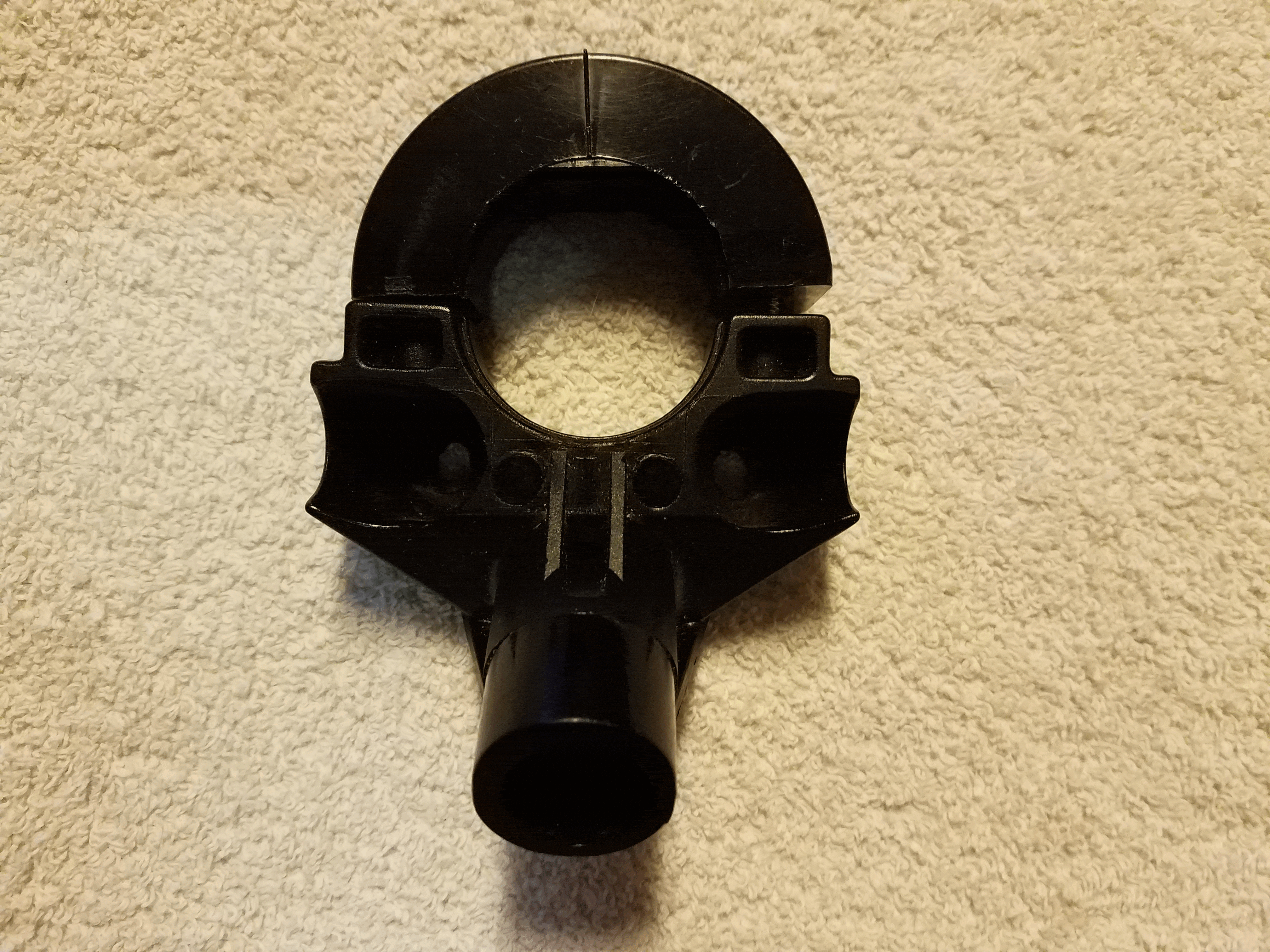

Dish comes with a 40MM LNBF Clamp.
Does NOT come with LNBF.
|
Patriot 120CM Satellite Dish $ 139.00
Plus Shipping
Please
e-mail or call
816-228-1801
with shipping information for Quote
Shipping in the Cont. US for $
135.00
$ 274.00
Total Price Including Shipping
|
