BSC100 DMSI

Want to add C-Band to your Small Dish?
Use this Conical Scalar to access some C-Band signals with a smaller dish.

3 bolts to mount the scalar to the LNBF.
Includes the dish mounting bracket.
May be used with the BSC421, BSC621-2, BSC621 and most LNBFs on the market.

$33.50 Includes Shipping within the 48 Cont. United States
Actual price is 25.00 plus 8.50 Shipping and Handling

C-Band Polarotor Adjustable Feed with New Servo Motor
Part # - Chaparral - PR 1 E

SPECIAL PRICE - ONLY $50.00 each
$58.50 Includes Shipping within the 48 Cont. United States
Actual price is 50.00 plus 8.50 Shipping and Handling

Dual C-Band Feed # 11-1329-1

SPECIAL PRICE - ONLY $72.00 each
$83.00 Includes Shipping within the 48 Cont. United States
Actual price is 72.00 plus 11.00 Shipping and Handling

C & Ku-Band CoRotor II Plus Adjustable Feed
with New Servo Motor - Part # 11-5000-1

SPECIAL PRICE - ONLY $89.00 each
$97.50 Includes Shipping within the 48 Cont. United States
Actual price is 89.00 plus 8.50 Shipping and Handling

C & Ku-Band CoRotor II Plus WideBand Adjustable Feed
with New Servo Motor /For Linear and Circular Polarization
Part # - Corotor II Plus Wideband: 11-7128-62

ONLY $124.00 each
$134.00 Includes Shipping within the 48 Cont. United States
Actual price is 124.00 plus 10.00 Shipping and Handling

Bulls Eye II Chaparral Feed Horn
This is for the Serious User who wants a setup with the BEST SIGNAL POSSIBLE!
This unit is designed for using 2 C and 2 Ku LNB's.

Part # - Bulls Eye II Chaparral Feed Horn: 11-3179-7

ONLY $325.00 each
$340.00 Includes Shipping within the 48 Cont. United States
Actual price is 325.00 plus 15.00 Shipping and Handling

Description
The Chaparral Bullseye II feedhorn is used in satellite systems equipped for reception of C-Band (3.7-4.2 GHz) and Ku-Band (11.7-12.75 GHz) satellite signals and is compatible with all LNBs designed for these frequencies. Simultaneous reception of both signal polarities is available for multiple receivers using a single dish. The adjustable scalar ring provides optimum reception and interference rejection with a wide variety of dishes.

Applications

The Bullseye II feedhorn is used in many home and commercial satellite systems for reception of C-Band satellites used for the broadcast of entertainment television, and for the reception of Ku-Band and hybrid (C/Ku) satellites used for network, business, entertainment and educational television. It is equipped with C-Band and Ku-Band orthomode feeds, allowing simultaneous reception of both signal polarities by multiple receivers in the system. This makes the Bullseye II feedhorn well suited for use in cable television system as well as in hotels, hospitals, schools, and other locations using multiple receivers for reception of C-Band and Ku-Band signals with a single dish.

Features

• 100% made in USA
• Precision cast-aluminum construction
• Cast waveguide flanges with water-tight gaskets
• Microwave-transparent throat cover
• Stainless steel mounting hardware
• Durable flake-resistant coating
• Mounts to single-pole, tripod and quadpod supports
• Polar axis alignment tool
• Adjustable scalar ring fits a variety of reflectors
• Two Year Warranty

Specifications

Part Number	11-3179-1
Frequency Range	C-Band: 3.7-4.2 GHz Ku-Band: 11.70-12.75 GHz
VSWR	C-Band: 1.6 to 1 Ku-Band: 1.4 to 1
f/D Range	.39 to .42
Cross Pol. Isolation	C-Band: 18 dB Ku-Band: 25 dB
RF Ports	C-Band: WR229 Ku-Band: WR75
Temperature Range	-40° C to +60° C
Size	8.625" x 8" x 5.5"
Weight	3 lbs.
Warranty	1 year

C-Band Digital 13K LNBF - ASC421
$48.00 each
Plus Shipping

$55.50 Includes Shipping within the 48 Cont. United States
Actual price is 48.00 plus 7.50 Shipping and Handling

(Click for Specs)

Excellent for Analog and MPEG2 Digital Feeds!

$55.50 Includes Shipping within the 48 Cont. United States
Actual price is 48.00 plus 7.50 Shipping and Handling

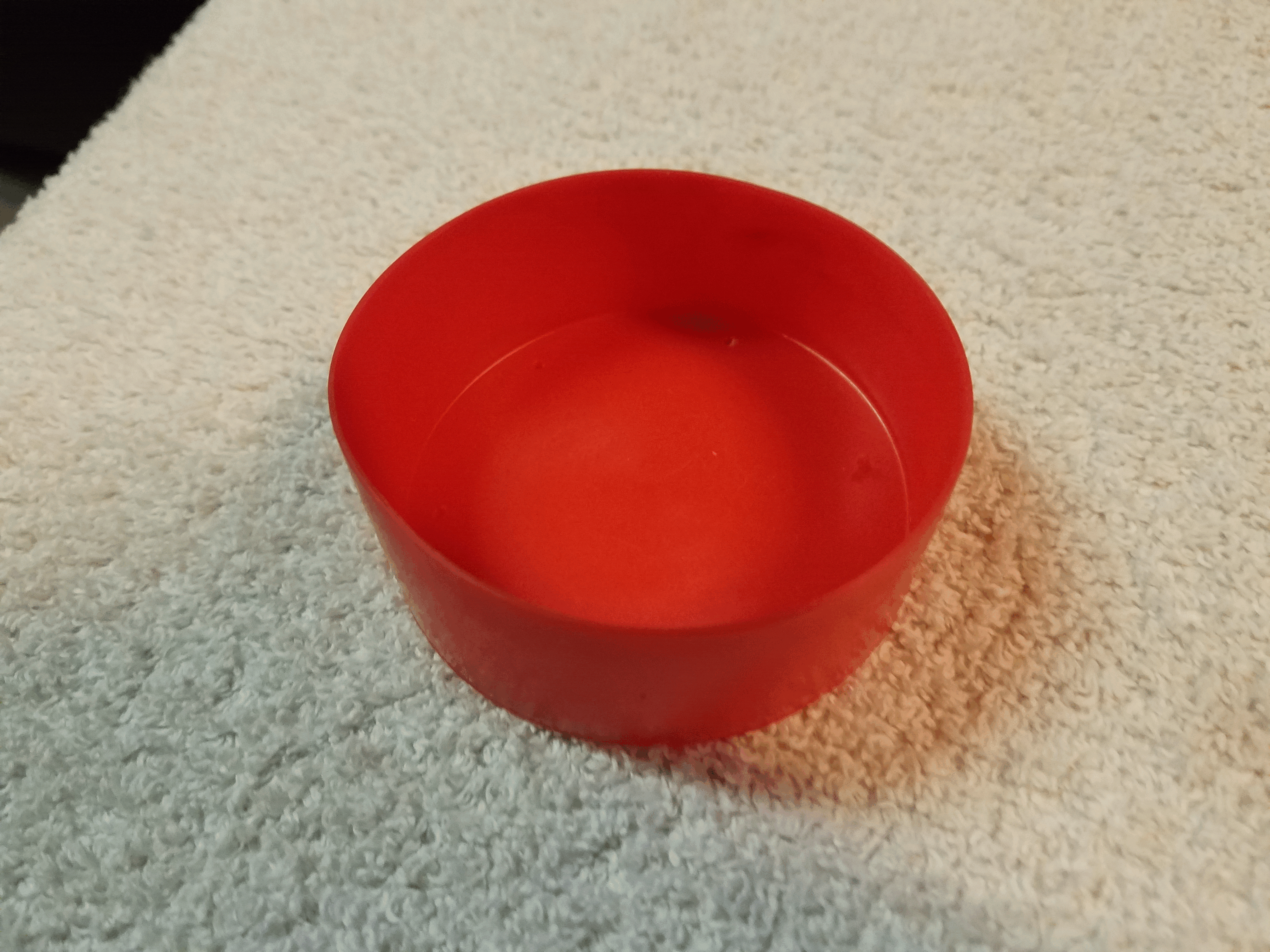

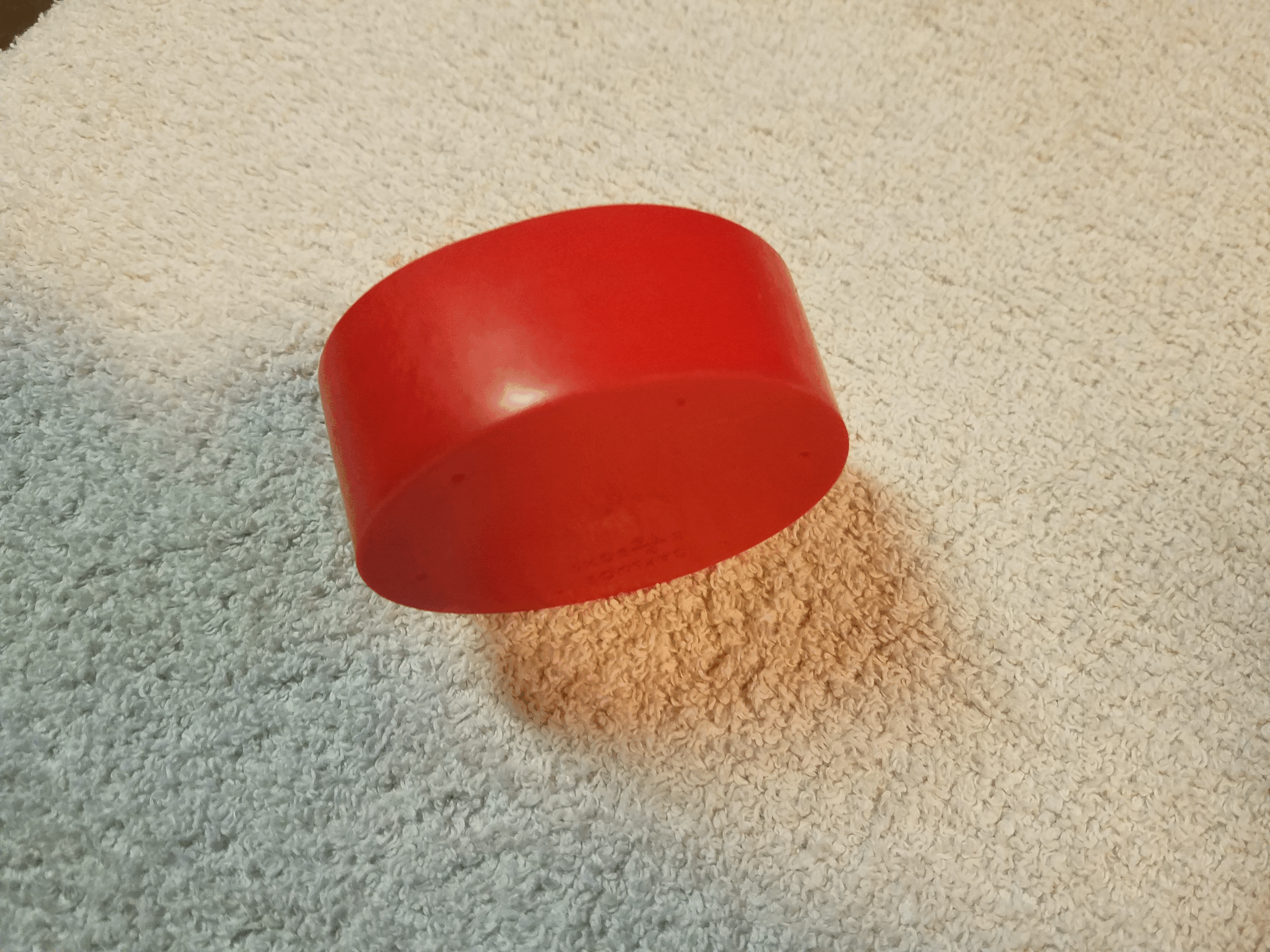

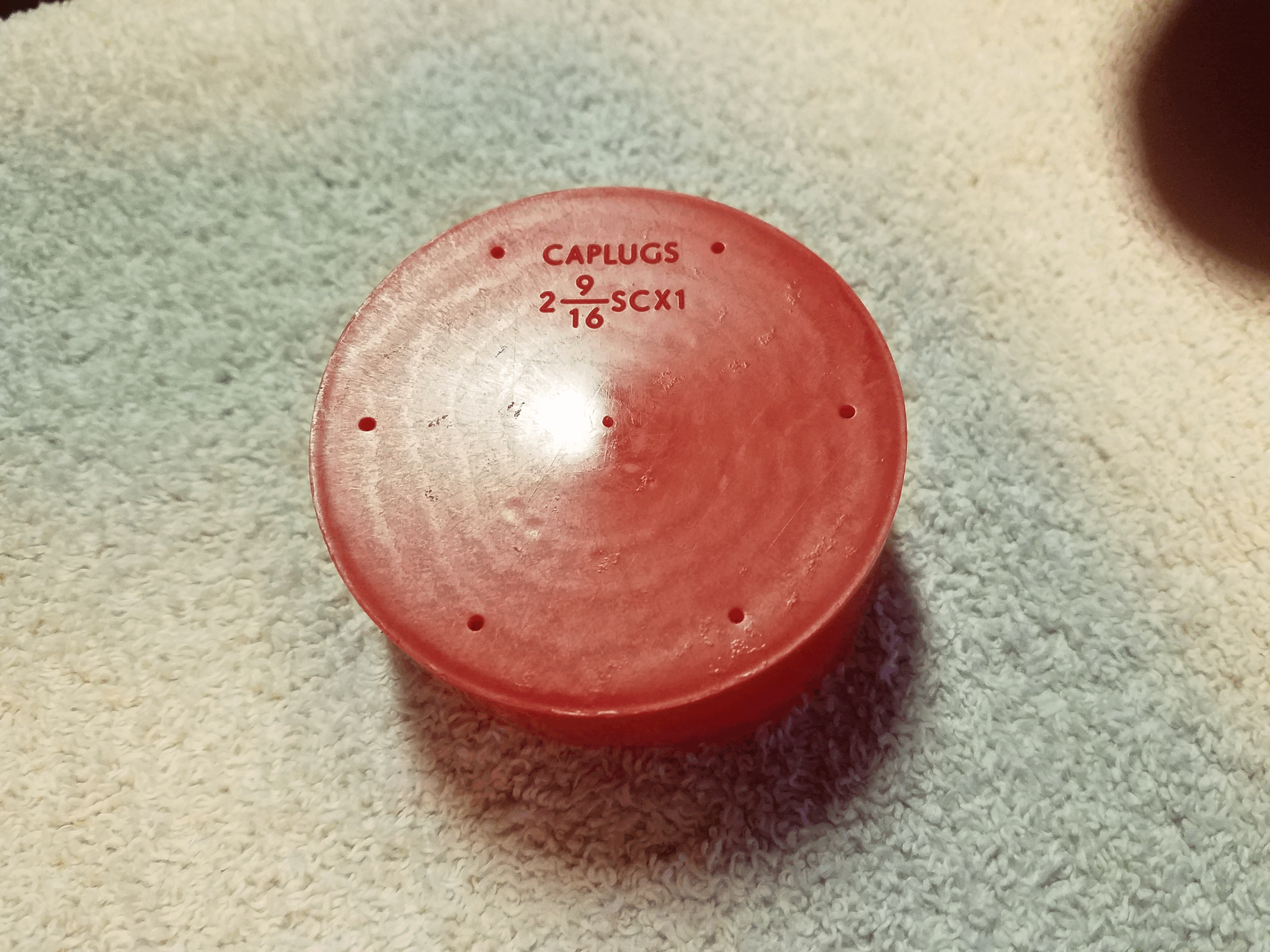

Feed Horn Cap

$3.50 plus 7.50 Shipping and Handling
