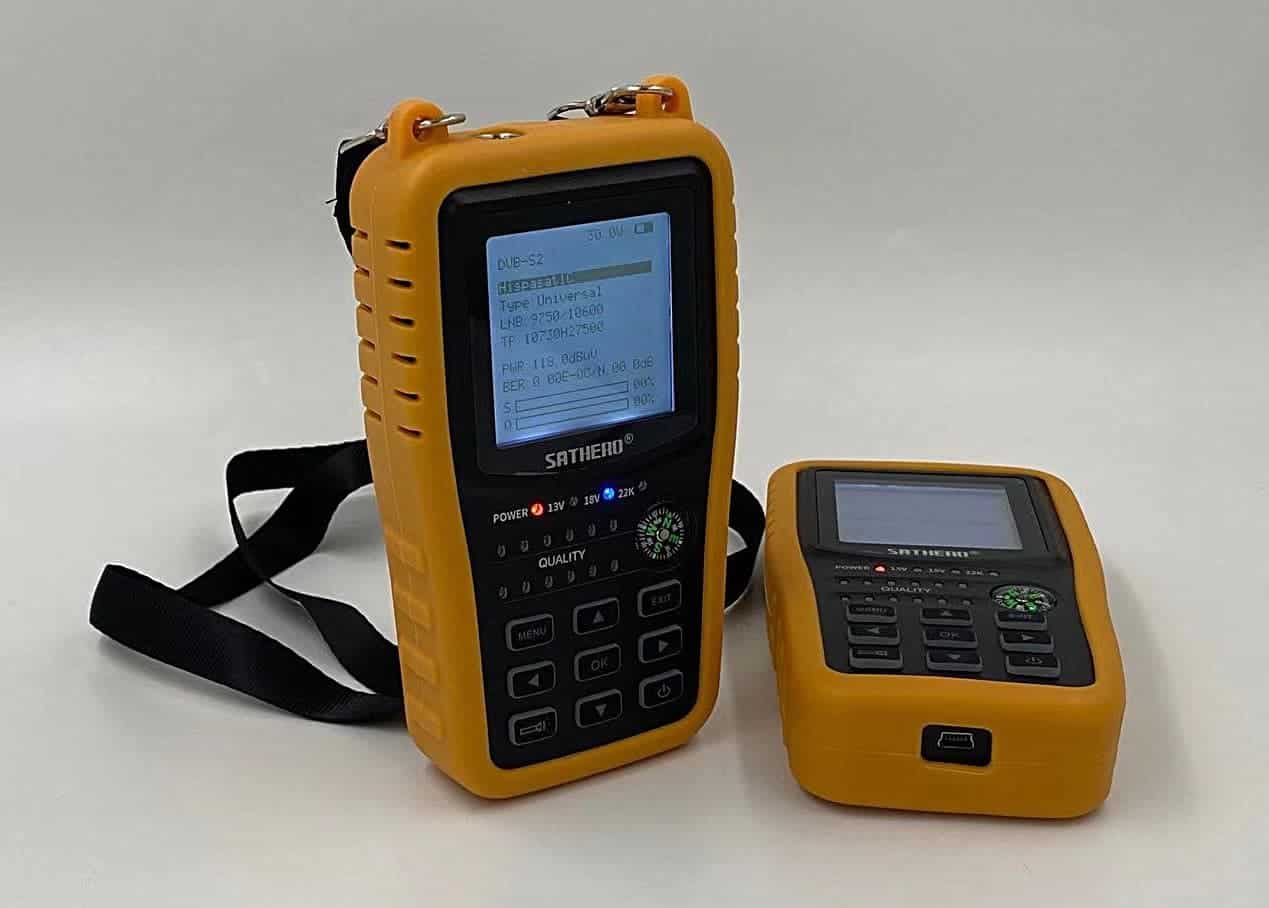

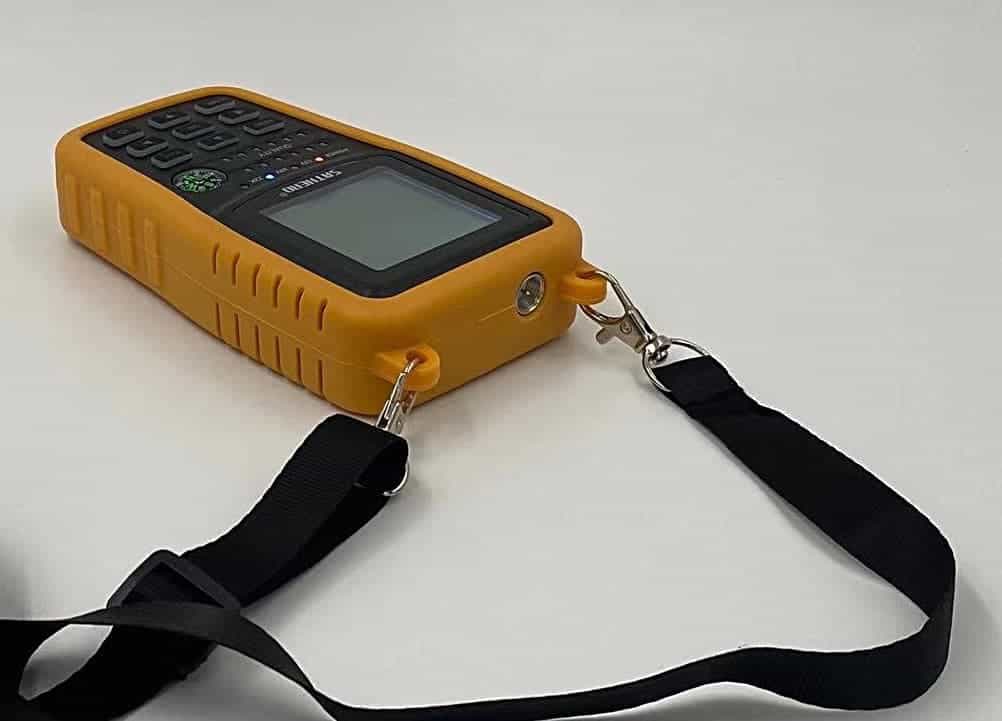

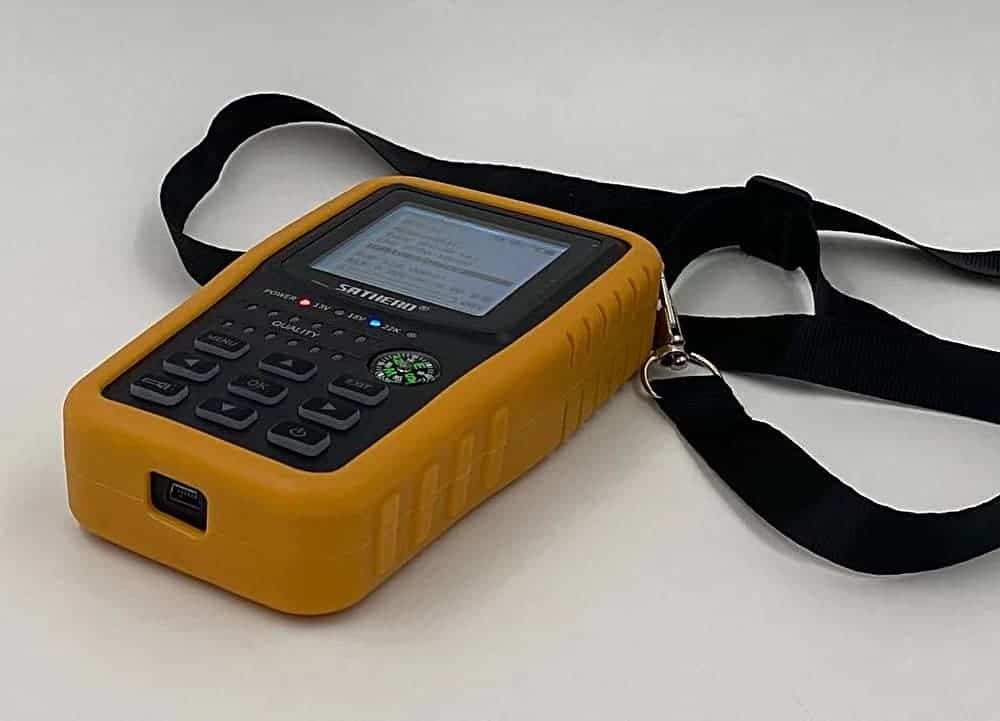

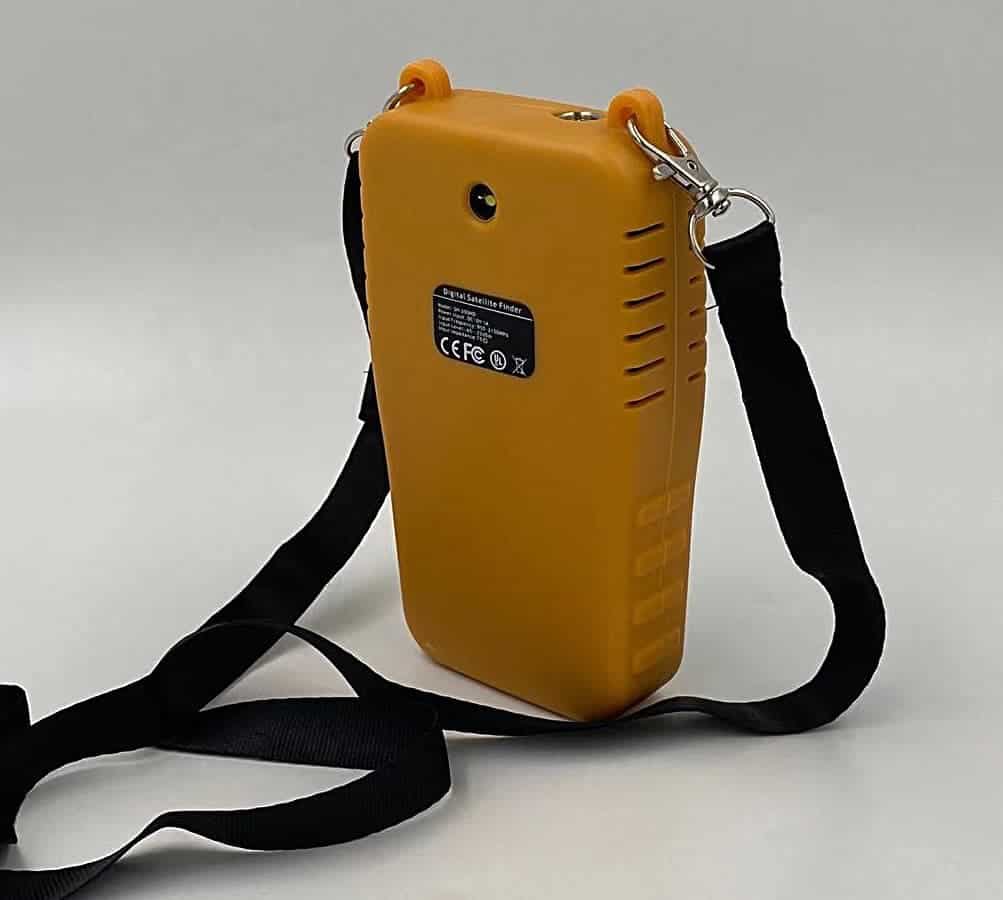

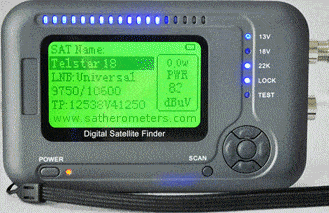

Sathero SH-200 Digital Satellite Meter

$159.00 USD Shipped to United States, PR & Guam

US Customers please click here -

$176.00 USD Shipped to Canada

Canadian Customers please click here -

===============================================================================

Sathero SH-200 works anywhere in the world and is a lightest and most practical Digital Satellite TV Signal meter in the world.  It is a professional satellite finder tool of cost effective design for the satellite TV installer or end user.

Easily and quickly search DVB-S2, DVB-S, MPEG-4, ABS-S, MPEG-4, CBS2/MPEG4, ISDB(Japan BSD HDTV) and other satellite signals.

Simplified design, simplified menus, easy operations. The whole meter has only seven shortcut buttons, easy for new users.

High quality and stability from our tuner imported from Japan to ensure display data accuracy.

High contrast, anti-glare LCD Screen in bold font. Menu can be read easily in the sun without shading.

Specs:

• Smallest and fastest digital signal meter
• Support DVB-S,DVB-S2, MPEG-4, ABS-S, CBS MPEG-4, ISDB protocol
• Tests the cable
• Input Frequency 950~2150MHz
• Input Level -65~ -25dBm
• Input Impedance 75O
• Shows quality readings by LED
• Shows power and NIT value
• Preset global satellite data
• Programmable parameter
• Signal Lock audio tone
• Scan and show the channel numbers
• Clear and easy to read LCD
• All operations are on one screen
• LCD automatic turn off
• 22KHz switchs automatically
• Function operation and Signal Lock Light
• Indicator Lights for 13/18 volts
• Indicator lights for 22 KHz
• LNB short-circuit protection
• USB port for software upgrades
• Global AC power charger included
• Carrying case included
• Hand strap included
• USB software upgrade cable included
• Removable battery design
• High-capacity lithium battery

Technical Advantages:

1. Simplified design, simplified menus, easy operations. The whole meter has only seven shortcut buttons, easy for new users.

2. High quality and stability from our tuner imported from Japan to ensure display data accuracy.

3. Easily and quickly search DVB-S2, DVB-S, MPEG-4, ABS-S, MPEG-4, CBS2/MPEG4, ISDB(Japan BSD HDTV) and other satellite signals.

4. High contrast, anti-glare LCD Screen in bold font. Menu can be read easily in the sun without shading.

5. With background lights use at night or in dark environments.

6. Use our specialized software tools to download and update the latest satellite parameters from our website. New databases can be easily imported into the instrument.

7. Software tools are compatible with Microsoft Office Excel. Users can easily add, edit or delete the names of satellites, locations and channel parameters.

8. Users can modify the satellite parameters using the shortcut buttons.

9. When the dish is close to the required satellite, a number of LED lamps and dBuV values will synchronously display signal quality. Lock light and tone will alert user.

10. When satellite signal is locked the meter can search and display all programs name of the transponder.

11. (Cable Test) ports: to help users detect faulty cables.

12. Small and light weight, the whole device including lithium battery weighs only 0.28kg.

13.Designed with removable rear cover, for easy battery replacement.

14. Hand held with wrist strap.

15. When fully charged, the powerful lithium battery can continuously work for up to 3.5 hours with standby time up to 5 hours or more.

Sat Hero Website:  http://satherometers.com/

Sat Hero Manual:  http://satherometers.com/docs/manual-english.pdf

===============================================================================
